G2E140 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

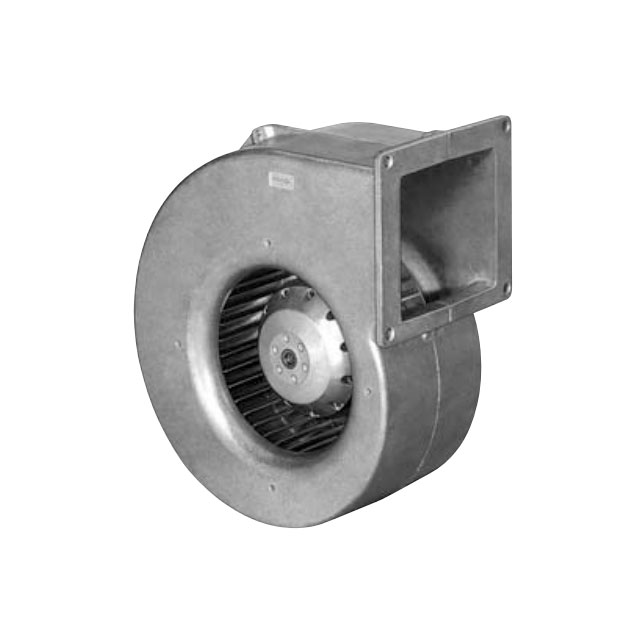

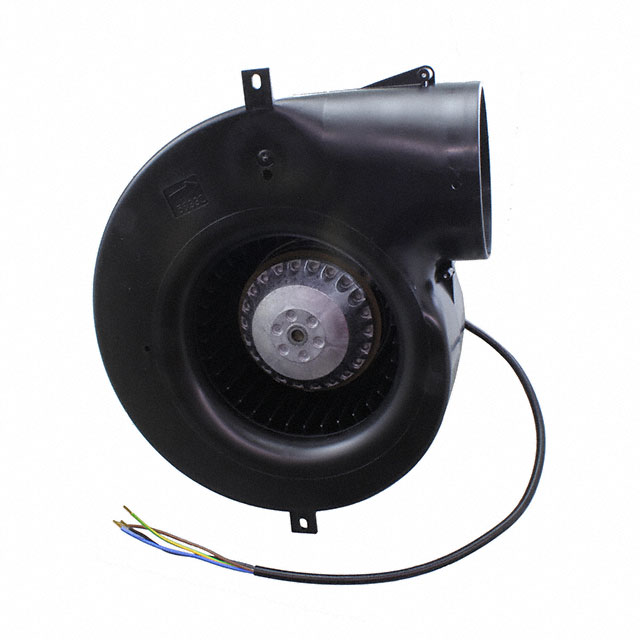

FAN BLWR CENT 237X100MM 230VAC
| Part | Material - Frame | Current Rating (Amps) | Material - Blade | Voltage - Rated | Fan Type | Static Pressure | Static Pressure | RPM | Weight | Weight | Size / Dimension | Size / Dimension [x] | Size / Dimension [z] | Termination | Operating Temperature | Ingress Protection | Width [x] | Power (Watts) | Features | Bearing Type | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Width [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Plastic | 0.51 A | Polypropylene (PP) | 230 VAC | Blower Centrifugal | 49.9 Pa | 0.2 in H2O | 1850 RPM | 1.6 kg | 3.5 lbs | Rectangular/Rounded | 237 mm | 277 mm | 4 Wire Leads | 35 °C | IP44 | 100 mm | 115 W | Capacitor Thermal Overload Protection (TOP) | Ball | CCC CE GOST | |||||
 ebm-papst Inc. | Aluminum | 0.64 A | Steel | 230 VAC | Blower Centrifugal | 100 Pa | 0.401 in H2O | 1700 RPM | Rectangular/Rounded | 226.8 mm | 247.5 mm | 4 Wire Leads | IP44 | 145 W | Capacitor Thermal Overload Protector (TOP) | Ball | CCC CE EAC | 40 °C | -25 °C | -25 °C | 40 °C | 130 mm | ||||
 ebm-papst Inc. | Aluminum | 0.51 A | Steel | 230 VAC | Blower Centrifugal | 1500 RPM | Rectangular/Rounded | 226.8 mm | 247.5 mm | 4 Wire Leads | IP44 | 115 W | Capacitor Thermal Overload Protector (TOP) | Ball | CCC CE EAC | 35 °C | -25 °C | 130 mm |
