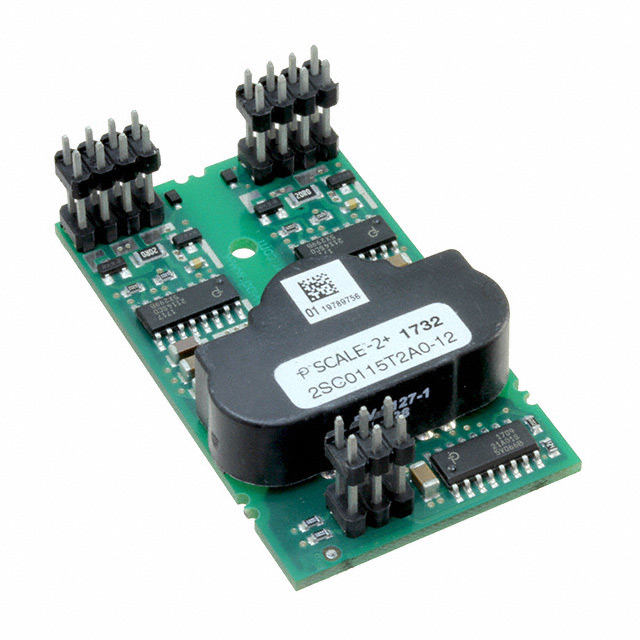

2SC0115 Series
Manufacturer: POWER INTEGRATIONS
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
IGBT DRIVER, 14.5V-15.5V, MODULE ROHS COMPLIANT: YES
| Part | Fall Time (Typ) | Rise Time (Typ) | Gate Type | Number of Drivers | Channel Type | Current - Peak Output (Sink) | Current - Peak Output (Source) | Package Name | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | High Side Voltage - Max (Bootstrap) | Driven Configuration | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 POWER INTEGRATIONS | 12 ns | 6 ns | IGBT | 2 | Independent | 15 A | 15 A | Module | 14.5 V | 15.5 V | 1.2 kV | High-Side Low-Side | 105 °C | -40 °C | Surface Mount | Module |
