SMAJ Series

Manufacturer: YAGEO

Catalog

ESD PROTECTION DIODES / TVS DIODES SMAJ - CA 6.5V

Part	Voltage - Clamping (Max) @ Ipp [Max]	Type	Current - Peak Pulse (10/1000µs)	Bidirectional Channels [custom]	Applications	Voltage - Reverse Standoff (Typ)	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Unidirectional Channels [custom]

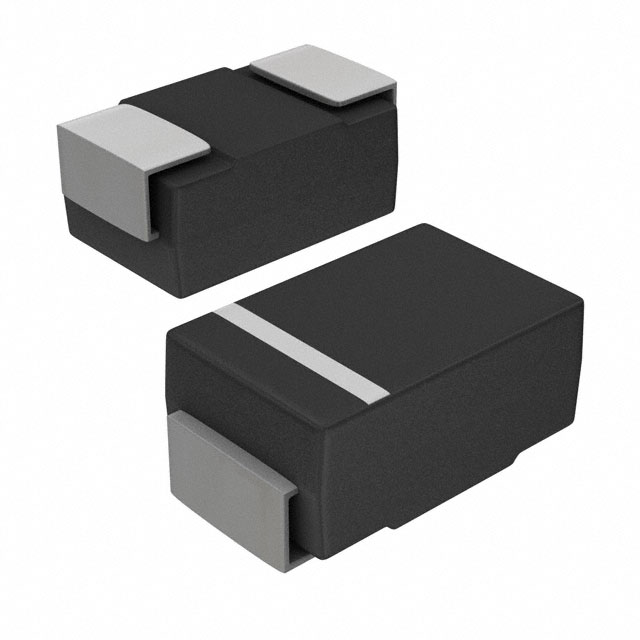

YAGEO SMAJ6.5CA/TR13	11.2 V	Zener	35.7 A	1	General Purpose	6.5 V	Surface Mount	DO-214AC (SMA)	150 °C	-55 °C	DO-214AC SMA	400 W	7.22 V
YAGEO SMAJ33CA/TR7	53.3 V	Zener	7.5 A	1	General Purpose	33 V	Surface Mount	DO-214AC (SMA)	150 °C	-55 °C	DO-214AC SMA	400 W	36.7 V
YAGEO SMAJ28A/TR7	45.4 V	Zener	8.8 A		General Purpose	28 V	Surface Mount	DO-214AC (SMA)	150 °C 150 °C	-65 °C -55 °C	DO-214AC SMA	400 W	31.1 V	1
YAGEO SMAJ15CA/TR7	24.4 V	Zener	16.4 A	1	General Purpose	15 V	Surface Mount	DO-214AC (SMA)	150 °C	-55 °C	DO-214AC SMA	400 W	16.7 V
YAGEO SMAJ16CA/TR7	26 V	Zener	15.4 A	1	General Purpose	16 V	Surface Mount	DO-214AC (SMA)	150 °C	-55 °C	DO-214AC SMA	400 W
YAGEO SMAJ400CA/TR13	648 V	Zener	600 mA	1	General Purpose	400 V	Surface Mount	DO-214AC (SMA)	150 °C	-55 °C	DO-214AC SMA	400 W	447 V
YAGEO SMAJ78CA/TR13	126 V	Zener	3.2 A	1	General Purpose	78 V	Surface Mount	DO-214AC (SMA)	150 °C	-55 °C	DO-214AC SMA	400 W	86.7 V
YAGEO SMAJ440A/TR7	713 V	Zener	600 mA		General Purpose	440 V	Surface Mount	DO-214AC (SMA)	150 °C	-55 °C	DO-214AC SMA	400 W	492 V	1
YAGEO SMAJ110CA/TR13	177 V	Zener	2.3 A	1	General Purpose	110 V	Surface Mount	DO-214AC (SMA)	150 °C	-55 °C	DO-214AC SMA	400 W	122 V
YAGEO SMAJ45A/TR13	72.7 V	Zener	5.5 A		General Purpose	45 V	Surface Mount	DO-214AC (SMA)	150 °C	-55 °C	DO-214AC SMA	400 W	50 V	1
