Resettable Fuses - PPTC
Resettable Fuses - PPTC
| Part | Approval Agency | Qualification | Grade | Current - Trip (It) | Current - Max [Max] | Voltage - Max [Max] | Current - Hold (Ih) (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Resistance - Initial (Ri) (Min) [Min] | Lead Spacing | Lead Spacing | Resistance - Post Trip (R1) (Max) [Max] | Mounting Type | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Type | Time to Trip | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [diameter] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current - Hold (Ih) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

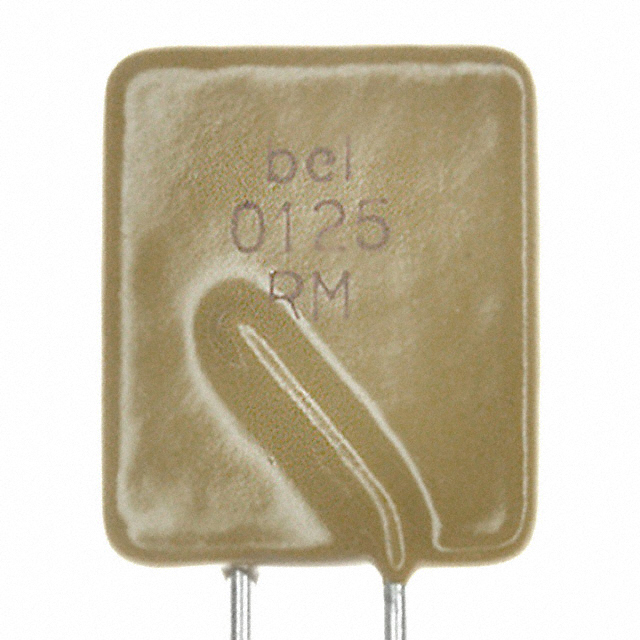

 Bel Fuse Inc. | cURus TUV | AEC-Q200 | Automotive | 2.5 A | 12.5 A | 120 V | 1.25 A | 85 °C | -40 C | 0.551 in | 0.161 in | 14 mm | 4.1 mm | 0.11 Ohms | 0.201 in | 5.1 mm | 330 mOhms | Through Hole | Disc Radial | 0.854 in | 21.7 mm | Polymeric | 20 s | |||||||

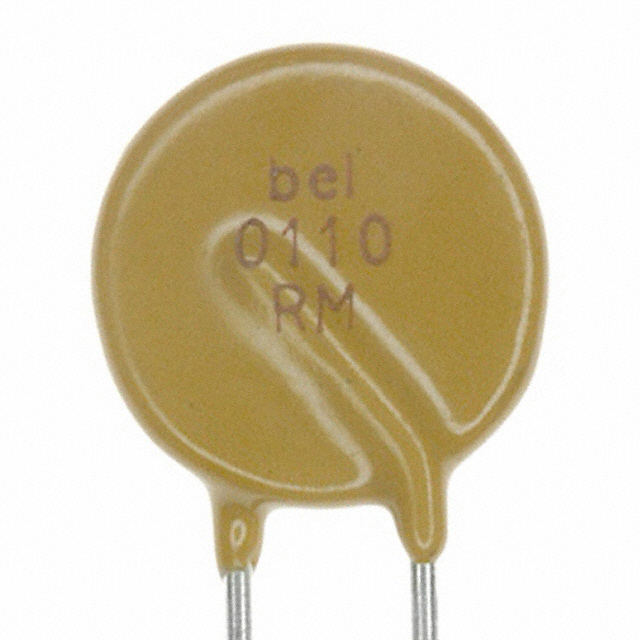

 Bel Fuse Inc. | cURus TUV | AEC-Q200 | Automotive | 2.2 A | 8 A | 120 V | 85 °C | -40 C | 150 mOhms | 0.201 in | 5.1 mm | 380 mOhms | Through Hole | Disc Radial | Polymeric | 8.2 s | 13.3 mm | 0.161 " | 4.1 mm | 0.524 " | 18.3 mm | 0.72 in | 1.1 A |
