1-1462050 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

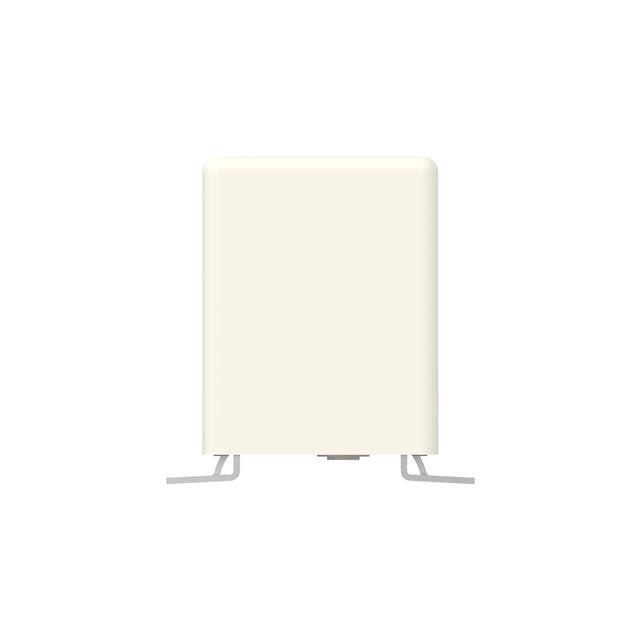

RELAY RF SPDT 2A 5V
| Part | Contact Material | Coil Power | Coil Resistance | Operating Temperature (Min) | Operating Temperature (Max) | Termination Style | Release Time | Contact Form | Contact Rating (Current) | Coil Current | Coil Voltage | Coil Type | Mounting Type | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Must Operate Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold (Au) Silver (Ag) | 140 mW | 178 Ohms | -55 °C | 85 °C | Gull Wing | 5 ms | 1 C Form SPDT | 2 A | 28.1 mA | 5 V | Dual Coil Latching | Surface Mount | 220 VDC | 250 VAC | 3.75 VDC | 5 ms |
 TE Connectivity AMP Connectors | Gold (Au) Silver (Ag) | 140 mW | 64 Ohms | -55 °C | 85 °C | Gull Wing | 5 ms | 1 C Form SPDT | 2 A | 46.9 mA | 3 VDC | Dual Coil Latching | Surface Mount | 220 VDC | 250 VAC | 2.25 VDC | 5 ms |
