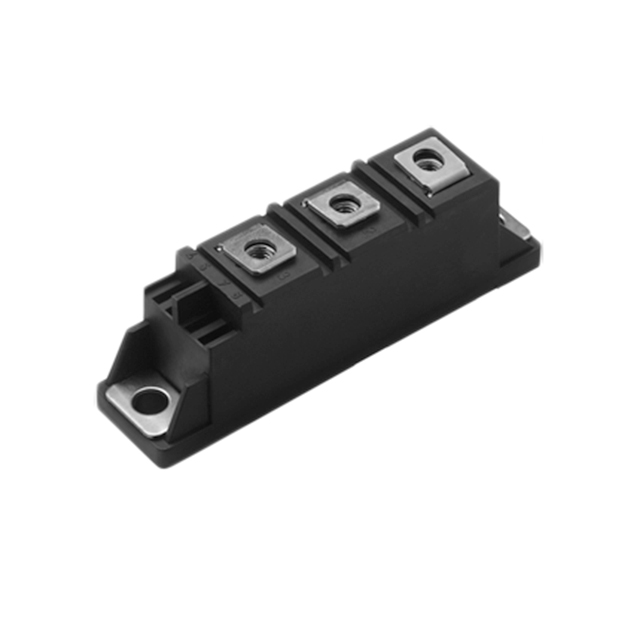

VSKD56 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K
DIODE MODULE GP 600V 30A ADDAPAK
| Part | Speed [Min] | Supplier Device Package | Diode Configuration | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Current - Average Rectified (Io) (per Diode) | Voltage - DC Reverse (Vr) (Max) [Max] | Package / Case | Current - Reverse Leakage @ Vr | Technology | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 200 mA 500 ns | ADD-A-PAK® | 1 Pair Common Cathode | -40 °C | 150 °C | 30 A | 600 V | ADD-A-PAK (3) | 10 mA | Standard | Chassis Mount |
Vishay General Semiconductor - Diodes Division | 200 mA 500 ns | ADD-A-PAK® | 1 Pair Common Cathode | -40 °C | 150 °C | 15 A | 1400 V | ADD-A-PAK (3) | 10 mA | Standard | Chassis Mount |
Vishay General Semiconductor - Diodes Division | 200 mA 500 ns | ADD-A-PAK® | 1 Pair Common Cathode | -40 °C | 150 °C | 30 A | 1000 V | ADD-A-PAK (3) | 10 mA | Standard | Chassis Mount |
Vishay General Semiconductor - Diodes Division | 200 mA 500 ns | ADD-A-PAK® | 1 Pair Common Cathode | -40 °C | 150 °C | 30 A | 1.2 kV | ADD-A-PAK (3) | 10 mA | Standard | Chassis Mount |
Vishay General Semiconductor - Diodes Division | 200 mA 500 ns | ADD-A-PAK® | 1 Pair Common Cathode | -40 °C | 150 °C | 30 A | 400 V | ADD-A-PAK (3) | 10 mA | Standard | Chassis Mount |
