FP15R12 Series

Manufacturer: INFINEON

Catalog

IGBT MODULE, PIM THREE PHASE INPUT RECTIFIER, 28 A, 1.85 V, 130 W, 150 °C, MODULE

Part	Vce(on) (Max) @ Vge, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Input Capacitance (Cies) @ Vce	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Input	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Collector Cutoff (Max) [Max]	Mounting Type	Power - Max [Max]	IGBT Type

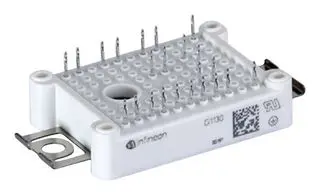

INFINEON FP15R12W1T4B11BOMA1	2.25 V	1200 V	890 pF	Module	28 A	Standard	Three Phase Inverter	-40 C	150 °C	Module	1 mA	Chassis Mount	130 W
INFINEON FP15R12KS4CBOSA1	3.7 V	1200 V	1 nF	Module	30 A	Standard	Single	-40 C	125 °C	Module	5 mA	Chassis Mount	180 W

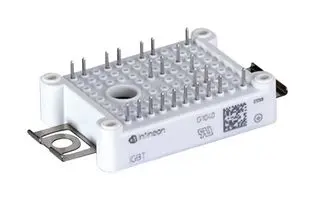

INFINEON FP15R12W1T4BOMA1	2.25 V	1200 V	890 pF	Module	28 A	Standard	Three Phase Inverter	-40 C	150 °C	Module	1 mA	Chassis Mount	130 W	Trench Field Stop
INFINEON FP15R12KE3BOMA1
INFINEON FP15R12W1T7PB3BPSA1

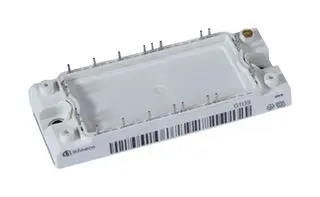

INFINEON FP15R12KE3GBOSA1		1200 V	1.1 nF	Module	25 A	Standard	Three Phase Inverter	-40 C	125 °C	Module	1 mA	Chassis Mount	105 W	Trench Field Stop

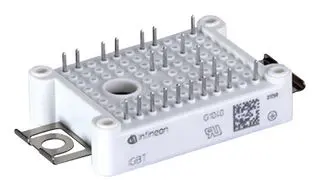

INFINEON FP15R12W1T4PBPSA1	2.25 V	1200 V	890 pF	Module	30 A	Three Phase Bridge Rectifier	Three Phase Inverter	-40 C	150 °C	Module	1 mA	Chassis Mount	20 mW	Trench Field Stop

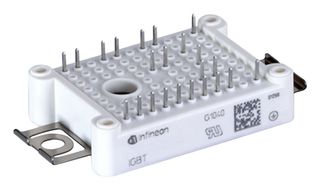

INFINEON FP15R12W1T4B3BOMA1	2.25 V	1200 V	890 pF	Module	28 A	Standard	Three Phase Inverter	-40 C	150 °C	Module	1 mA	Chassis Mount	130 W	Trench Field Stop

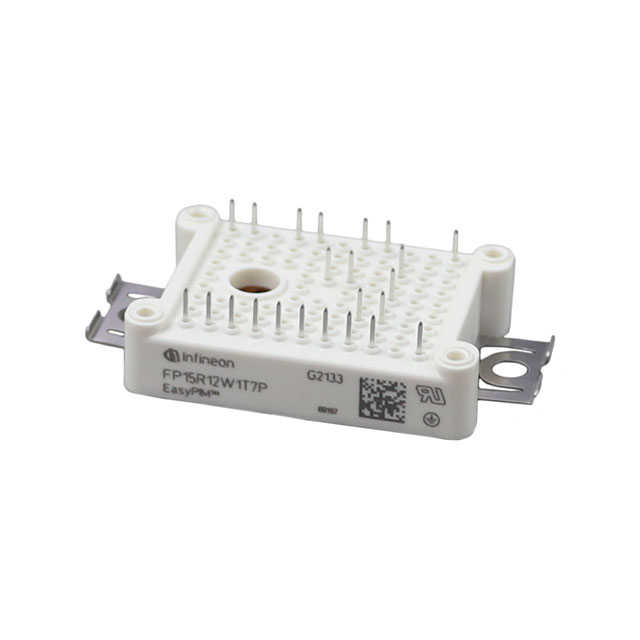

INFINEON FP15R12W1T7PBPSA1		1200 V	2.82 nF	AG-EASY1B	15 A	Three Phase Bridge Rectifier	Three Phase Inverter	-40 °C	175 °C	Module	3 µA	Chassis Mount		Trench Field Stop
INFINEON FP15R12KT3BOSA1	2.45 V	1200 V	600 pF	Module	18 A	Standard	Three Phase Inverter	-40 C	125 °C	Module	5 mA	Chassis Mount	83.5 W
