XZMOK53 Series

Manufacturer: SunLED

Catalog

LED ORANGE CLEAR CHIP SMD

Part	Package / Case	Package / Case	Lens Style	Lens Transparency	Supplier Device Package	Height (Max) [Max] [z]	Wavelength - Dominant	Lens Color	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Wavelength - Peak	Lens Size [diameter]	Current - Test	Configuration	Mounting Type	Lens Size [y]	Lens Size [x]	Height (Max) [z]

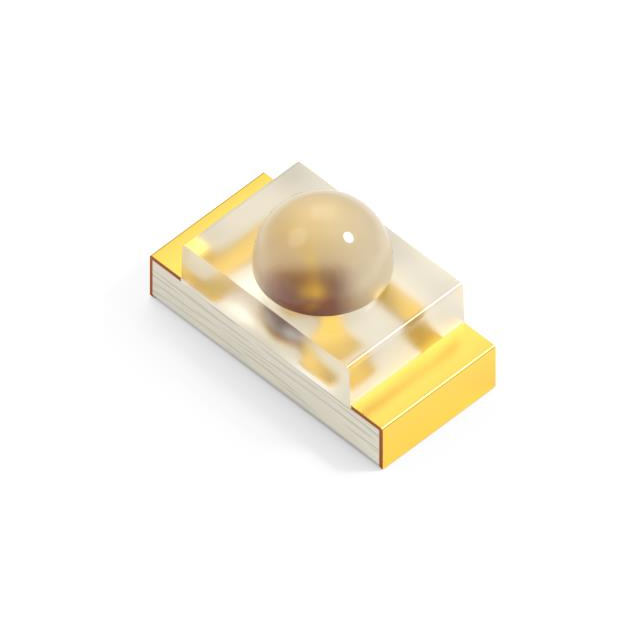

SunLED XZMOK53W-8	1608 Metric	0603	Round with Domed Top	Clear	0603 (1608 Metric)	0.95 mm	601 nm	Colorless	2.1 V	497 mcd	1.6 mm	0.8 mm	60 °	610 nm	0.7 mm	20 mA	Standard	Surface Mount
SunLED XZMOK53W-3	1608 Metric	0603	Rectangle with Flat Top	Clear	0603 (1608 Metric) 2-SMD		601 nm	Colorless	2.1 V	178 mcd	1.6 mm	0.8 mm	120 °	610 nm		20 mA	Standard	Surface Mount	0.8 mm	1.1 mm	0.45 mm
SunLED XZMOK53W-1	1608 Metric	0603	Rectangle with Flat Top	Clear	0603 (1608 Metric) 2-SMD		601 nm	Colorless	2.1 V	178 mcd	1.6 mm	0.8 mm	120 °	610 nm		20 mA	Standard	Surface Mount	0.8 mm	1.1 mm
