ANR-UL Series

Manufacturer: OptiFuse

Catalog

FUSE AUTO 20A 32VDC BLADE ATO

Part	Package / Case	Fuse Type	Color	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Approval Agency	Current Rating (Amps)	Voltage Rating - DC	Response Time	Breaking Capacity @ Rated Voltage

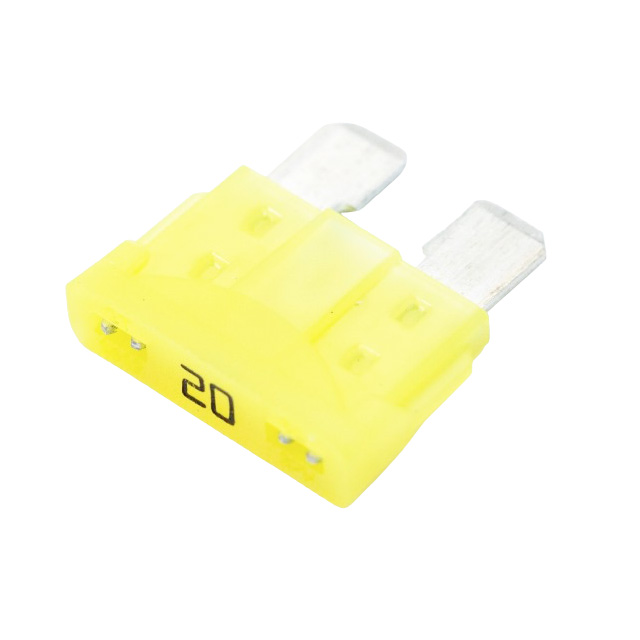

OptiFuse ANR-UL-20A	Blade ATO/ATC	Automotive	Yellow	Requires Holder	5.5 mm	0.217 in	0.768 in	19.5 mm	0.547 in	13.9 mm	cURus ISO SAE UL 248	20 A	32 V	Fast Blow	1 kA

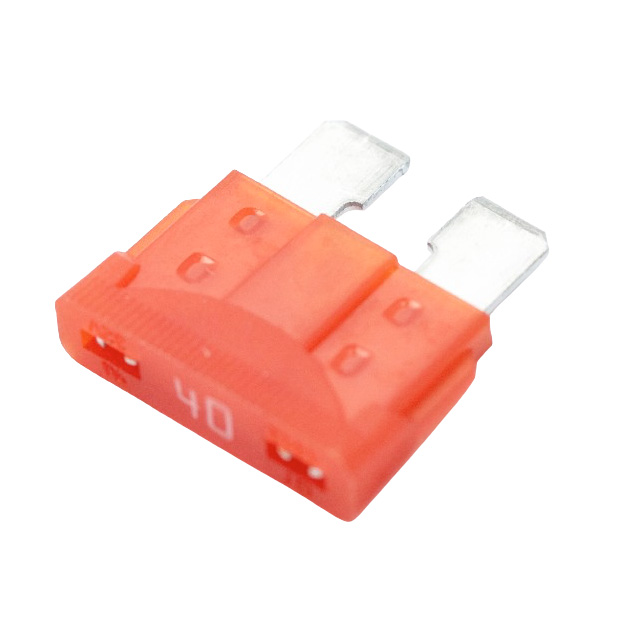

OptiFuse ANR-UL-40A	Blade ATO/ATC	Automotive		Requires Holder	5.5 mm	0.217 in	0.768 in	19.5 mm	0.547 in	13.9 mm	cURus ISO SAE UL 248	40 A	32 V	Fast Blow	1 kA

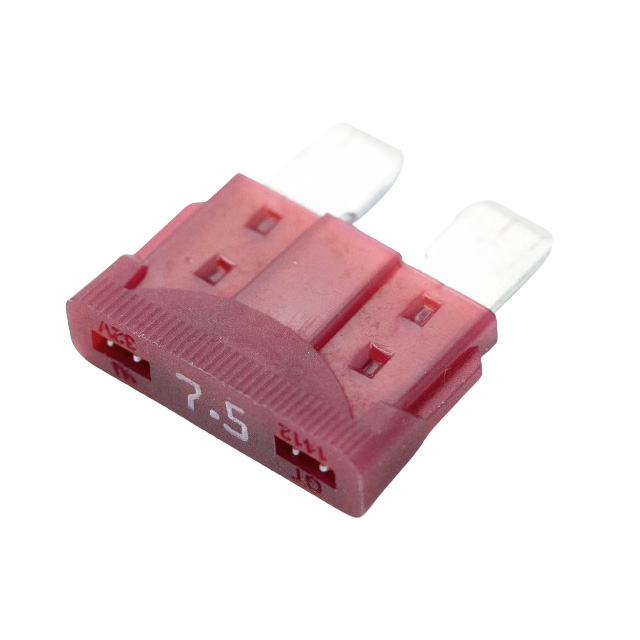

OptiFuse ANR-UL-7.5A	Blade ATO/ATC	Automotive	Brown	Requires Holder	5.5 mm	0.217 in	0.768 in	19.5 mm	0.547 in	13.9 mm	cURus ISO SAE UL 248	7.5 A	32 V	Fast Blow	1 kA

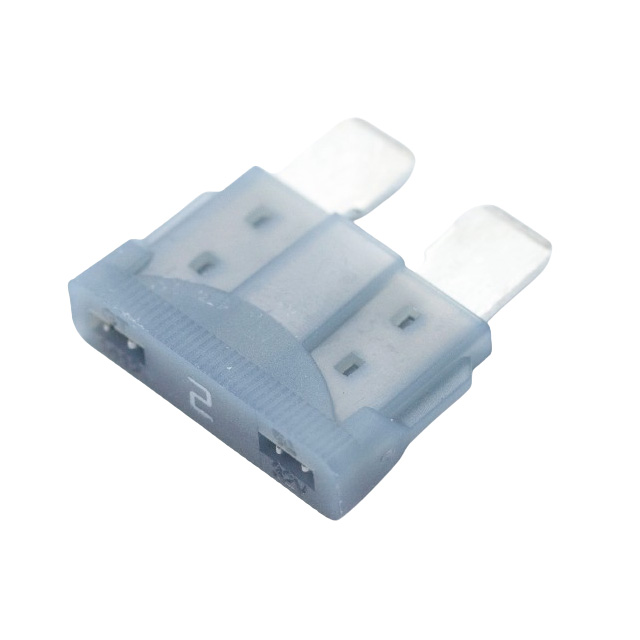

OptiFuse ANR-UL-2A	Blade ATO/ATC	Automotive	Gray	Requires Holder	5.5 mm	0.217 in	0.768 in	19.5 mm	0.547 in	13.9 mm	cURus ISO SAE UL 248	2 A	32 V	Fast Blow	1 kA

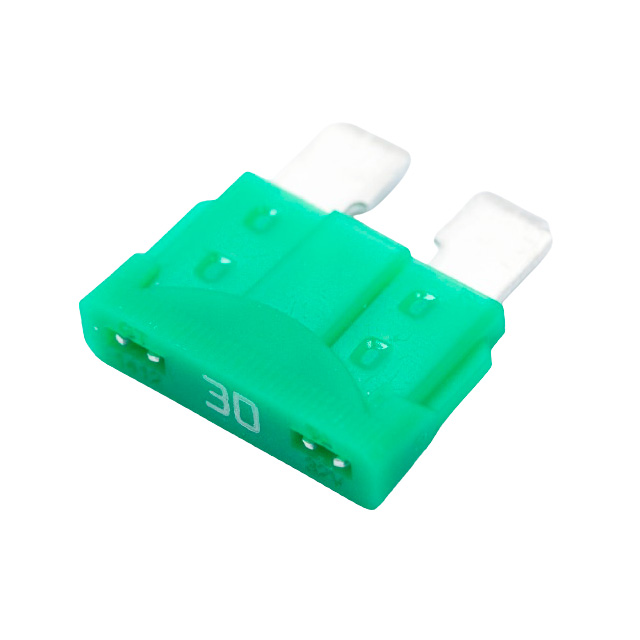

OptiFuse ANR-UL-30A	Blade ATO/ATC	Automotive	Green	Requires Holder	5.5 mm	0.217 in	0.768 in	19.5 mm	0.547 in	13.9 mm	cURus ISO SAE UL 248	30 A	32 V	Fast Blow	1 kA

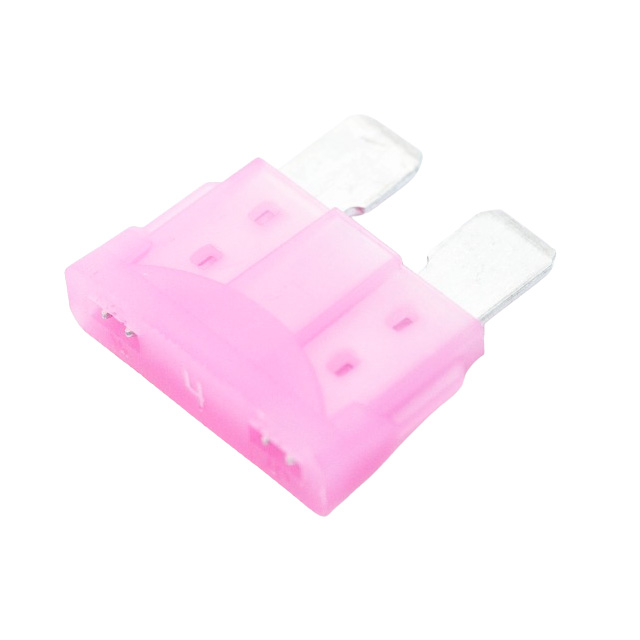

OptiFuse ANR-UL-4A	Blade ATO/ATC	Automotive	Pink	Requires Holder	5.5 mm	0.217 in	0.768 in	19.5 mm	0.547 in	13.9 mm	cURus ISO SAE UL 248	4 A	32 V	Fast Blow	1 kA

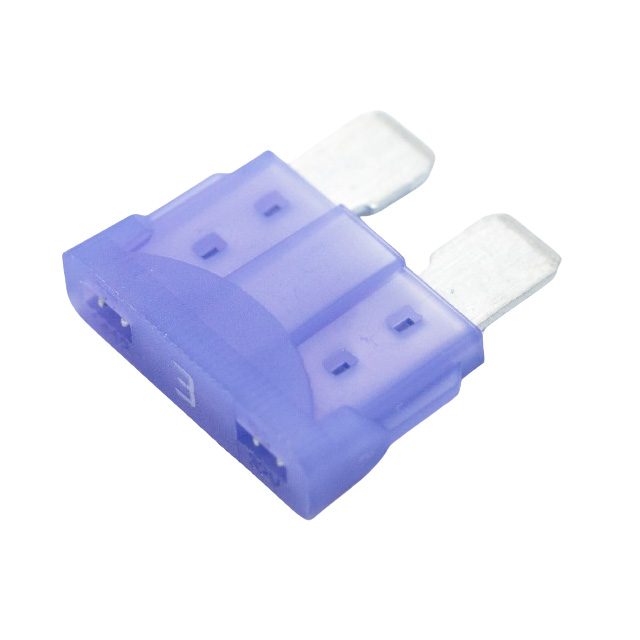

OptiFuse ANR-UL-3A	Blade ATO/ATC	Automotive	Violet	Requires Holder	5.5 mm	0.217 in	0.768 in	19.5 mm	0.547 in	13.9 mm	cURus ISO SAE UL 248	3 A	32 V	Fast Blow	1 kA

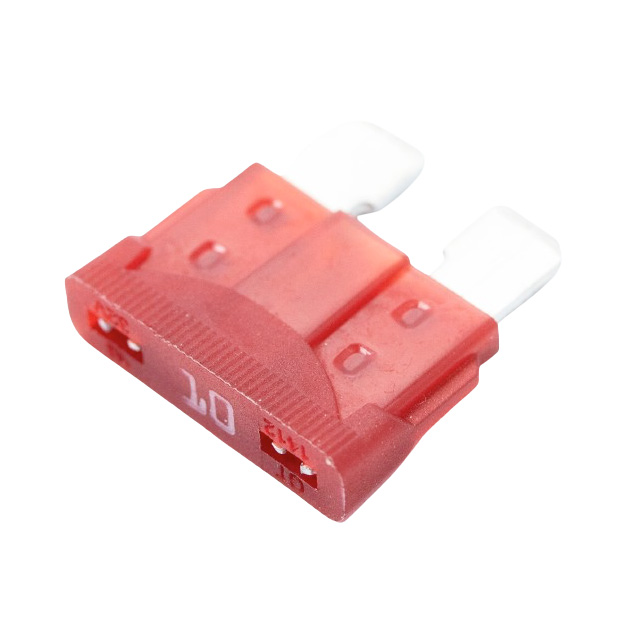

OptiFuse ANR-UL-10A	Blade ATO/ATC	Automotive	Red	Requires Holder	5.5 mm	0.217 in	0.768 in	19.5 mm	0.547 in	13.9 mm	cURus ISO SAE UL 248	10 A	32 V	Fast Blow	1 kA

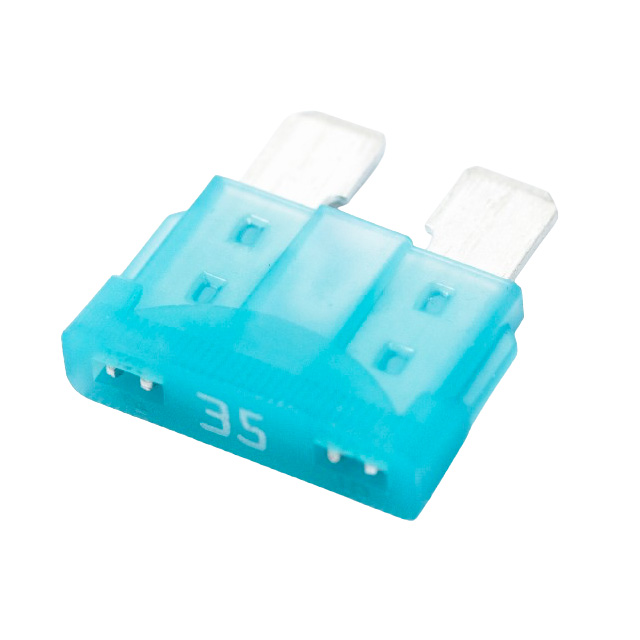

OptiFuse ANR-UL-35A	Blade ATO/ATC	Automotive	Dark Green	Requires Holder	5.5 mm	0.217 in	0.768 in	19.5 mm	0.547 in	13.9 mm	cURus ISO SAE UL 248	35 A	32 V	Fast Blow	1 kA

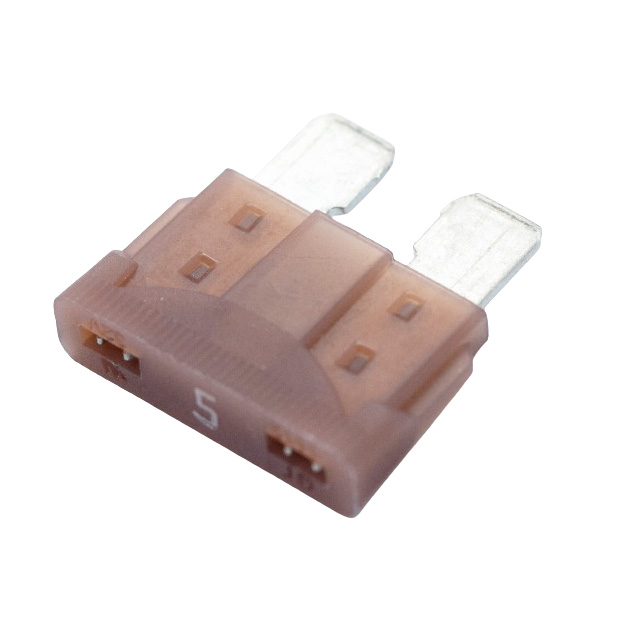

OptiFuse ANR-UL-5A	Blade ATO/ATC	Automotive	Tan	Requires Holder	5.5 mm	0.217 in	0.768 in	19.5 mm	0.547 in	13.9 mm	cURus ISO SAE UL 248	5 A	32 V	Fast Blow	1 kA
