77134 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

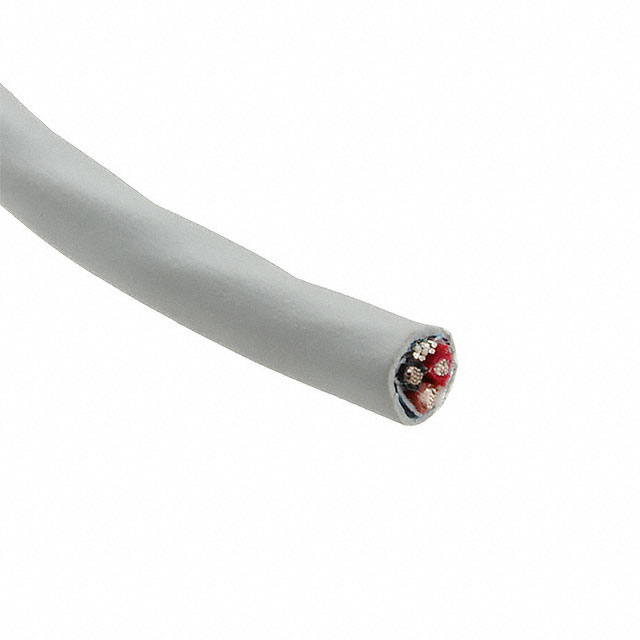

CABLE 3COND 16AWG SHLD
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [diameter] | Length | Length | Jacket (Insulation) Material | Number of Conductors | Wire Gauge | Conductor Material | Conductor Insulation | Ratings | Cable Type | Jacket Color | Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 19 | 0.0117 in | 304.8 m | 1000 ft | Polyphenylene Ether Modified (mPPE) | 3 | 16 AWG | Copper Tinned | Polyphenylene Ether Modified (mPPE) | ISO 10993 | Multi-Conductor | Slate | Biological Compatibility | -50 °C | 105 ░C | 600 V | 0.813 mm | 0.032 in | Foil |
