3167 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

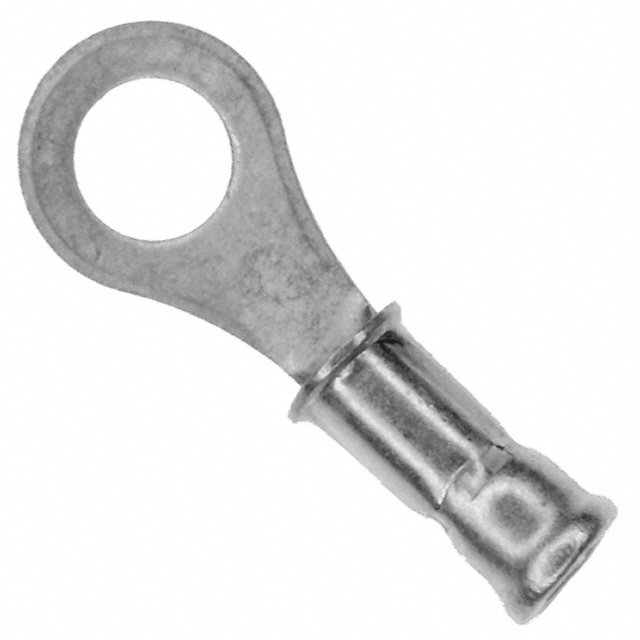

CONN RING CIRC 22-26AWG #4 CRIMP
| Part | Mounting Type | Insulation | Wire Gauge [Min] | Wire Gauge [Max] | Features | Termination | Length - Overall [x] | Length - Overall [x] | Stud/Tab Size | Contact Material | Thickness [custom] | Thickness [custom] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Width - Outer Edges [y] | Width - Outer Edges [y] | Terminal Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Non-Insulated | 22 AWG | 26 AWG | Serrated Termination | Crimp | 0.585 " | 14.86 mm | 4 Stud | Copper | 0.46 mm | 0.018 in | 0.082 " | 2.08 mm | 0.05 in | 1.27 mm | 0.203 in | 5.16 mm | Circular | Tin |
