MMC5603 Series
Manufacturer: Memsic Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

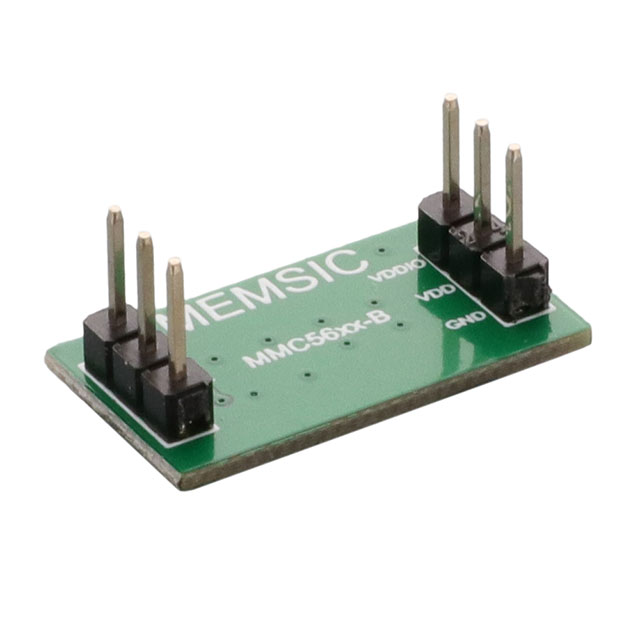

DEV BOARD FOR MMC5603NJ
| Part | Supplied Contents | Sensing Range (Min) | Sensing Range (Max) | Contents | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Utilized IC / Part | Sensor Type | Interface | Bandwidth | Features | Resolution | Technology | Axis | Package Name | Package Length | Package Width | Output Type | Current - Supply (Max) | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Memsic Inc. | Board(s) | -30 Gauss | 30 Gauss | Board | 1.62 V | 3.6 V | MMC5603 | AMR (Anisotropic Magnetoresistive) Magnetic | I2C Serial | ||||||||||||||

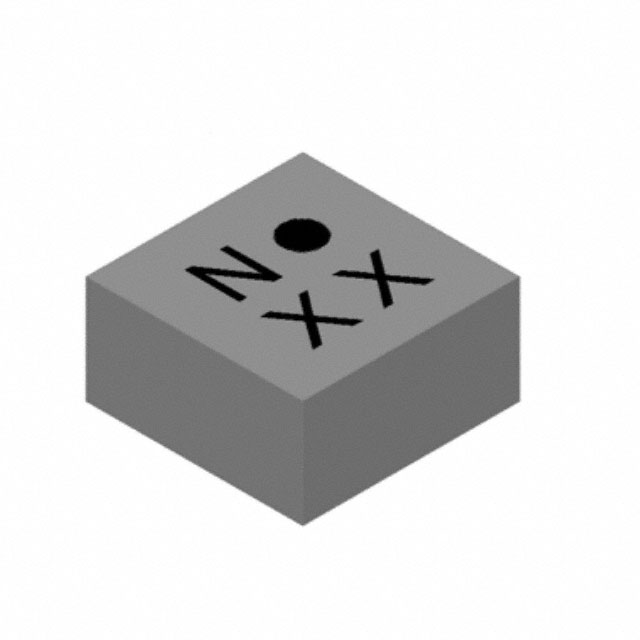

 Memsic Inc. | -3 mT | 3 mT | 1.62 V | 3.6 V | 1 kHz | Temperature Compensated | 20 b | Magnetoresistive | X Y Z | 4-WLP | 0.82 mm | 0.82 mm | I2C I3C | 4 mA | Surface Mount | -40 °C | 85 °C | 4-UFBGA WLBGA |
