53 Series

Catalog

CURRENT TRANSFORMER 1:70 500VRMS 0.007OHM PRIM. DCR 4.5OHM SEC. DCR 10000MA PRIM. 6 TERMINAL GULL WING SMD

Part	Frequency Range [Min]	Frequency Range [Max]	Type	Mounting Type	DC Resistance (DCR) [custom]	DC Resistance (DCR) [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Termination Style	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Turns Ratio - Primary:Secondary	DC Resistance (DCR)
Murata Electronics 53070C	50 kHz	500 kHz	Invasive	Surface Mount	4.5 Ohm	7 mOhm	1	70	0.327 "	8.3 mm	7.2 mm	0.283 "	Gull Wing	5.4 mm	0.213 in	980 µH
Murata Electronics 53050C	50 kHz	500 kHz	Invasive	Surface Mount	1.75 Ohm	7 mOhm	1	50	0.327 "	8.3 mm	7.2 mm	0.283 "	Gull Wing	5.4 mm	0.213 in	500 µH
Murata Electronics 53100C	50 kHz	500 kHz	Invasive	Surface Mount	5.6 Ohm	7 mOhm			0.327 "	8.3 mm	7.2 mm	0.283 "	Gull Wing	5.4 mm	0.213 in	2 mH	1:100
Murata Electronics 53030C	50 kHz	500 kHz	Invasive	Surface Mount			1	30	0.327 "	8.3 mm	7.2 mm	0.283 "	Gull Wing	5.4 mm	0.213 in	180 µH		7 mOhm 850 mOhm
Murata Electronics 53040C	50 kHz	500 kHz	Invasive	Surface Mount	1.1 Ohm	7 mOhm			0.327 "	8.3 mm	7.2 mm	0.283 "	Gull Wing	5.4 mm	0.213 in	320 µH	1:40
Murata Electronics 53060C	50 kHz	500 kHz	Invasive	Surface Mount			1	60	0.327 "	8.3 mm	7.2 mm	0.283 "	Gull Wing	5.4 mm	0.213 in	720 µH		2.2 Ohm 7 mOhm
Murata Electronics 53150C	50 kHz	500 kHz	Invasive	Surface Mount					0.327 "	8.3 mm	7.2 mm	0.283 "	Gull Wing	5.4 mm	0.213 in	4.5 mH	1:150	7 mOhm 17.5 Ohm
Murata Electronics 53125C	50 kHz	500 kHz	Invasive	Surface Mount	7.5 Ohm	7 mOhm	1	125	0.327 "	8.3 mm	7.2 mm	0.283 "	Gull Wing	5.4 mm	0.213 in	3 mH

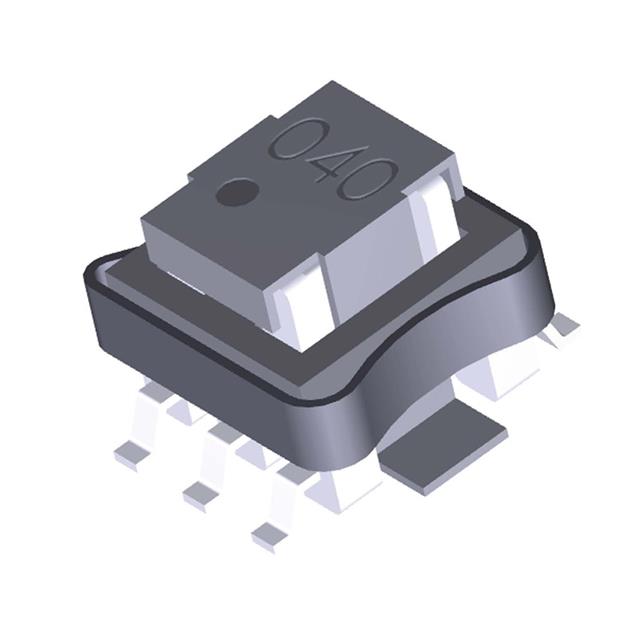

Murata Electronics 53020C	50 kHz	500 kHz	Invasive	Surface Mount	550 mOhm	7 mOhm			0.327 "	8.3 mm	7.2 mm	0.283 "	Gull Wing	5.4 mm	0.213 in	80 µH	1:20
