SWI3-5 Series

Manufacturer: CUI Inc.

Catalog

AC/DC WALL MOUNT ADAPTER 5V 3W

Part	Input Connector	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	No Load Power Consumption	Input Type	Power (Watts)	Applications	Output Connector	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Efficiency	Region Utilized	Approval Agency	Standard Number	Voltage - Output	Current - Output (Max) [Max]	Form	Cord Length	Cord Length	Polarization	Size / Dimension [z]	Size / Dimension [y]	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]	Output Connector [diameter]	Output Connector [z]	Output Connector [x]

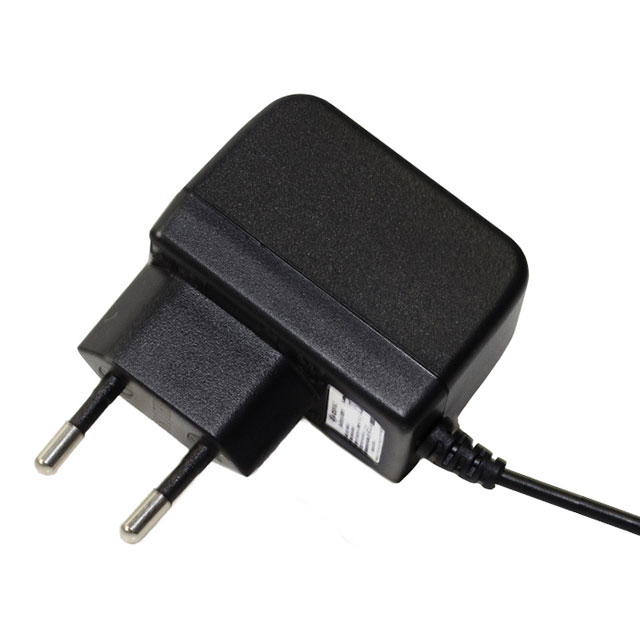

CUI Inc. SWI3-5-E-ST	CEE 7/16	2.13 in	29.5 mm	1.16 in	54 mm	2.95 in	75 mm	75 mW	Fixed Blade	3 W	ITE (Commercial)	Stripped Tinned Wire Leads	264 VAC	90 VAC	40 °C	CoC Tier 2 Level VI	Europe	CB Scheme IEC	60950-1 62368-1	5 V	600 mA	Wall Mount	1.5 m	59 in

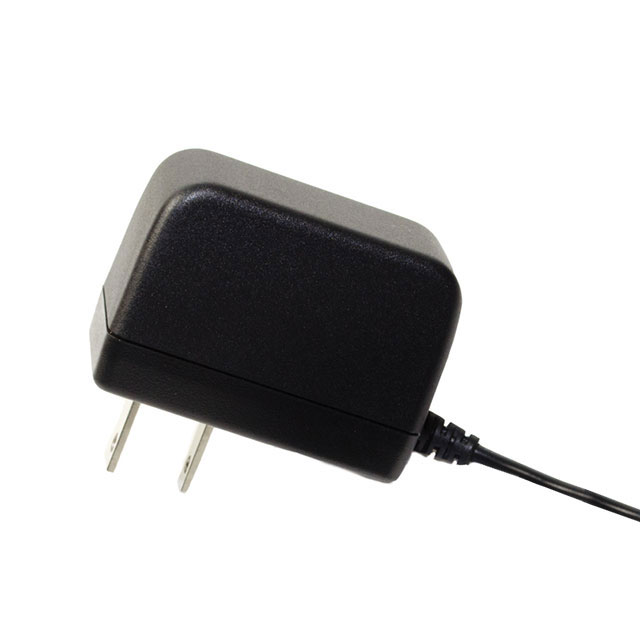

CUI Inc. SWI3-5-N-ST	NEMA 1-15P	2.13 in	29.5 mm	1.16 in	54 mm	2.17 in	55.1 mm	75 mW	Fixed Blade	3 W	ITE (Commercial)	Stripped Tinned Wire Leads	264 VAC	90 VAC	40 °C	Level VI	North America	CSA FCC PSE UL	60950-1 62368-1 C22.2 No. 60950-1	5 V	600 mA	Wall Mount	1.5 m	59 in

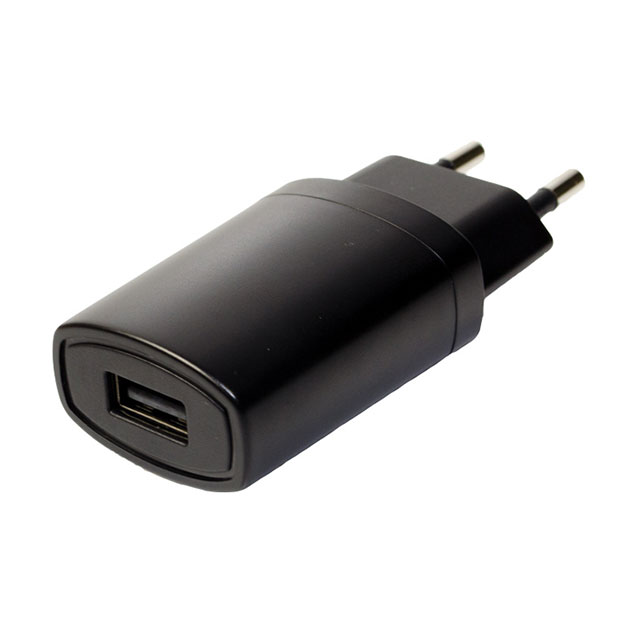

CUI Inc. SWI3-5-E-I38	CEE 7/16	0.9 in	36.3 mm	1.43 in	22.8 mm	2.58 "	65.6 mm	75 mW	Fixed Blade	3 W	ITE (Commercial)	USB A Receptacle	264 VAC	90 VAC	40 °C	CoC Tier 2 Level VI	Europe	CB Scheme IEC	60950-1 62368-1	5 V	600 mA	Wall Mount
CUI Inc. SWI3-5-E-P5R	CEE 7/16	2.13 in		1.16 in	54 mm	2.2 in		75 mW	Fixed Blade	3 W	ITE (Commercial)	Barrel Plug R/A	264 VAC	90 VAC	40 °C	CoC Tier 2 Level VI	Europe	CB Scheme IEC	60950-1 62368-1	5 V	600 mA	Wall Mount	1.5 m	59 in	Positive Center	56 mm	29.5 mm	9.5 mm	5.5 mm	2.1 mm
CUI Inc. SWI3-5-N-P6R	NEMA 1-15P	2.13 in	29.5 mm	1.16 in	54 mm	1.49 in	37.9 mm	75 mW	Fixed Blade	3 W	ITE (Commercial)	Barrel Plug R/A	264 VAC	90 VAC	40 °C	Level VI	North America	CSA FCC PSE UL	60950-1 62368-1 C22.2 No. 60950-1	5 V	600 mA	Wall Mount	1.5 m	59 in	Positive Center						2.5 mm 5.5 mm	9.5 mm
CUI Inc. SWI3-5-N-P5	NEMA 1-15P	1.16 "	54 mm	2.13 in	29.5 mm	1.49 in	37.9 mm	75 mW	Fixed Blade	3 W	ITE (Commercial)	Barrel Plug	264 VAC	90 VAC	40 °C	Level VI	North America	CSA FCC PSE UL	60950-1 62368-1 C22.2 No. 60950-1	5 V	600 mA	Wall Mount	1.5 m	59 in	Positive Center						2.1 mm 5.5 mm		9.5 mm
CUI Inc. SWI3-5-N-P6	NEMA 1-15P	2.13 in	29.5 mm	1.16 in	54 mm	1.49 in	37.9 mm	75 mW	Fixed Blade	3 W	ITE (Commercial)	Barrel Plug	264 VAC	90 VAC	40 °C	Level VI	North America	CSA FCC PSE UL	60950-1 62368-1 C22.2 No. 60950-1	5 V	600 mA	Wall Mount	1.5 m	59 in	Positive Center						2.5 mm 5.5 mm		9.5 mm
CUI Inc. SWI3-5-E-P6R	CEE 7/16	2.13 in		1.16 in	54 mm	2.2 in		75 mW	Fixed Blade	3 W	ITE (Commercial)	Barrel Plug R/A	264 VAC	90 VAC	40 °C	CoC Tier 2 Level VI	Europe	CB Scheme IEC	60950-1 62368-1	5 V	600 mA	Wall Mount	1.5 m	59 in	Positive Center	56 mm	29.5 mm				2.5 mm 5.5 mm	9.5 mm
CUI Inc. SWI3-5-N-I38	NEMA 1-15P	0.9 in		1.43 in	22.8 mm	1.87 in		75 mW	Fixed Blade	3 W	ITE (Commercial)	USB A Receptacle	264 VAC	90 VAC	40 °C	Level VI	North America	CSA FCC PSE UL	60950-1 62368-1 C22.2 No. 60950-1	5 V	600 mA	Wall Mount				47.4 mm	36.3 mm
CUI Inc. SWI3-5-E-P5	CEE 7/16	2.13 in		1.16 in	54 mm	2.2 in		75 mW	Fixed Blade	3 W	ITE (Commercial)	Barrel Plug	264 VAC	90 VAC	40 °C	CoC Tier 2 Level VI	Europe	CB Scheme IEC	60950-1 62368-1	5 V	600 mA	Wall Mount	1.5 m	59 in	Positive Center	56 mm	29.5 mm				2.1 mm 5.5 mm		9.5 mm
