4614X Series
Manufacturer: Bourns Inc.
Beta
⌘K

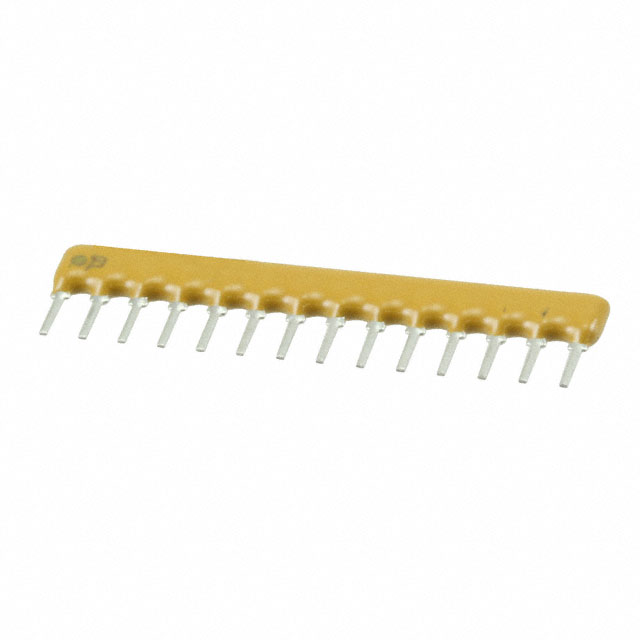

RES ARRAY 7 RES 100 OHM 14SIP
| Part | Mounting Type | Number of Pins | Number of Resistors | Resistance (Ohms) [custom] | Tolerance | Supplier Device Package | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Temperature Coefficient | Operating Temperature [Min] | Operating Temperature [Max] | Circuit Type | Power Per Element | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Resistance (Ohms) | Resistance (Ohms) | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Through Hole | 14 | 7 | 100 Ohms | 2 % | 14-SIP | 5.08 mm | 0.2 in | 100 ppm/°C | -55 C | 125 °C | Isolated | 300 mW | 0.098 in | 35.51 mm | 1.398 in | 2.49 mm | 14-SIP | |||
Bourns Inc. | Through Hole | 14 | 7 | 2 % | 14-SIP | 5.08 mm | 0.2 in | 100 ppm/°C | -55 C | 125 °C | Isolated | 300 mW | 0.098 in | 35.51 mm | 1.398 in | 2.49 mm | 14-SIP | 1k | |||
Bourns Inc. | Through Hole | 14 | 7 | 2 % | 14-SIP | 5.08 mm | 0.2 in | 100 ppm/°C | -55 C | 125 °C | Isolated | 300 mW | 0.098 in | 35.51 mm | 1.398 in | 2.49 mm | 14-SIP | 390 Ohms | |||
Bourns Inc. | Through Hole | 14 | 7 | 2 % | 14-SIP | 5.08 mm | 0.2 in | 100 ppm/°C | -55 C | 125 °C | Isolated | 300 mW | 0.098 in | 35.51 mm | 1.398 in | 2.49 mm | 14-SIP | 47 kOhms | |||
Bourns Inc. | Through Hole | 14 | 13 | 2 % | 14-SIP | 5.08 mm | 0.2 in | 100 ppm/°C | -55 C | 125 °C | Bussed | 200 mW | 0.098 in | 35.51 mm | 1.398 in | 2.49 mm | 14-SIP | 1.2 kOhms | |||
Bourns Inc. | Through Hole | 14 | 7 | 14-SIP | 5.08 mm | 0.2 in | 250 ppm/°C | -55 C | 125 °C | Isolated | 300 mW | 0.098 in | 35.51 mm | 1.398 in | 2.49 mm | 14-SIP | 22 Ohms | ±1Ohm | |||
Bourns Inc. | Through Hole | 14 | 24 | 330 Ohms 470 Ohms | 2 % | 14-SIP | 5.08 mm | 0.2 in | 100 ppm/°C | -55 C | 125 °C | Dual Terminator | 200 mW | 0.098 in | 35.51 mm | 1.398 in | 2.49 mm | 14-SIP | |||
Bourns Inc. | Through Hole | 14 | 13 | 2 % | 14-SIP | 5.08 mm | 0.2 in | 100 ppm/°C | -55 C | 125 °C | Bussed | 200 mW | 0.098 in | 35.51 mm | 1.398 in | 2.49 mm | 14-SIP | 1k | |||
Bourns Inc. | Through Hole | 14 | 7 | 330 Ohms | 2 % | 14-SIP | 5.08 mm | 0.2 in | 100 ppm/°C | -55 C | 125 °C | Isolated | 300 mW | 0.098 in | 35.51 mm | 1.398 in | 2.49 mm | 14-SIP | |||
Bourns Inc. | Through Hole | 14 | 7 | 4.7 kOhms | 2 % | 14-SIP | 5.08 mm | 0.2 in | 100 ppm/°C | -55 C | 125 °C | Isolated | 300 mW | 0.098 in | 35.51 mm | 1.398 in | 2.49 mm | 14-SIP |
