FIT0 Series

Manufacturer: DFRobot

Catalog

LED MOD WARM WHT LINEAR STRIP

Part	Size / Dimension [x]	Size / Dimension [y]	Lens Type	Voltage - Forward (Vf) (Typ)	Color	Configuration	Height [z]	Type	Viewing Angle	Current - Max [Max]	Luminous Flux @ Current/Temperature	CCT (K)	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Current - Test
DFRobot FIT0834	1000 mm	2.5 mm	Flat	3 V	Warm White	Linear Light Strip Flexible	1 mm	LED Module
DFRobot FIT0710	500 mm	10 mm	Flat	5 V	Warm White	Linear Light Strip		LED Module	120 °

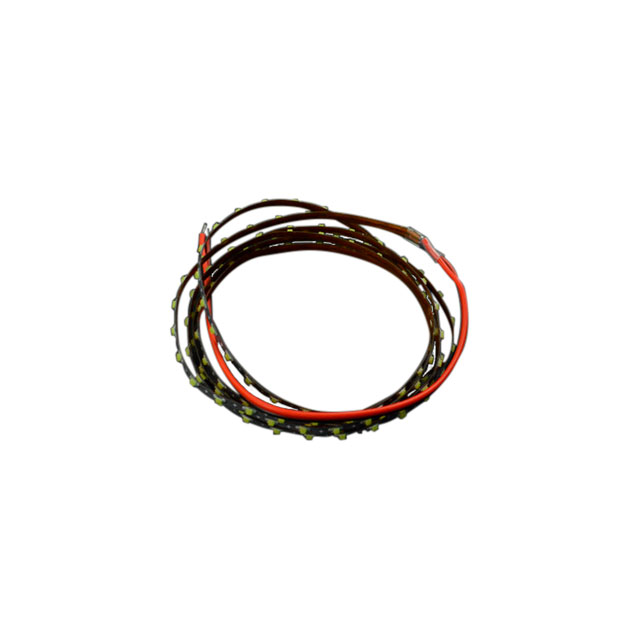

DFRobot FIT0835	1000 mm	2.5 mm	Flat	3 V	White	Linear Light Strip Flexible	1 mm	LED Module

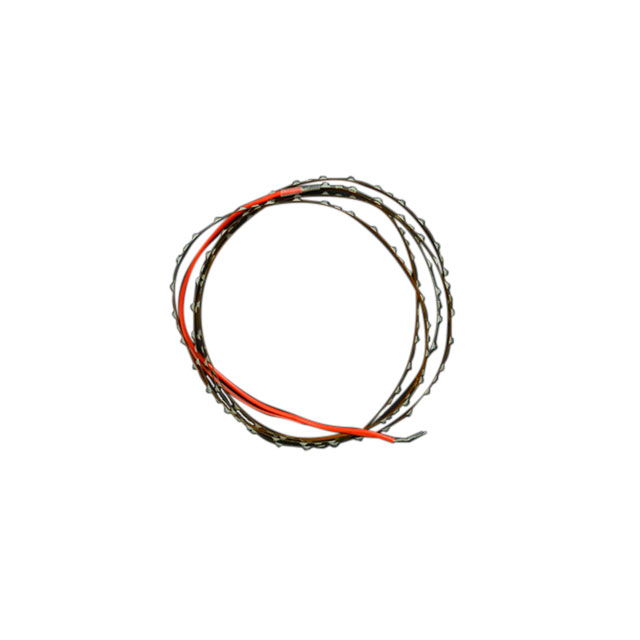

DFRobot FIT0842	1000 mm	2.5 mm	Flat	12 V	Yellow	Linear Light Strip Flexible	1 mm	LED Module

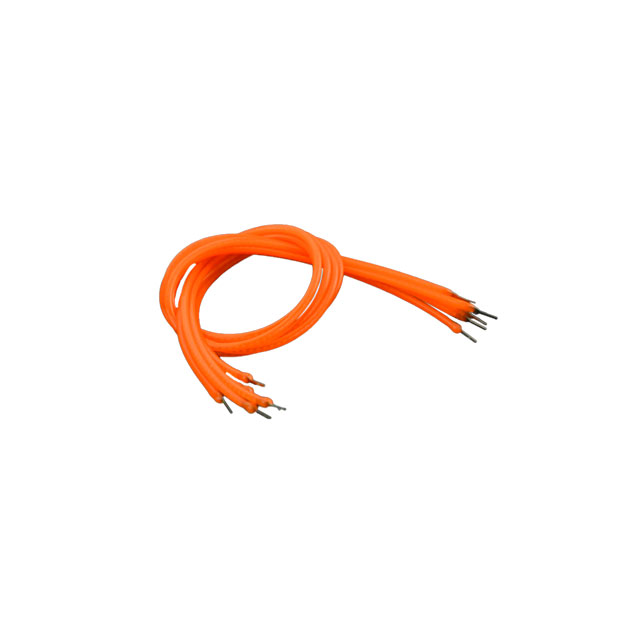

DFRobot FIT0811	257 mm	1.8 mm		3 V	Pink	Linear Light Strip Flexible		LED Module		80 mA

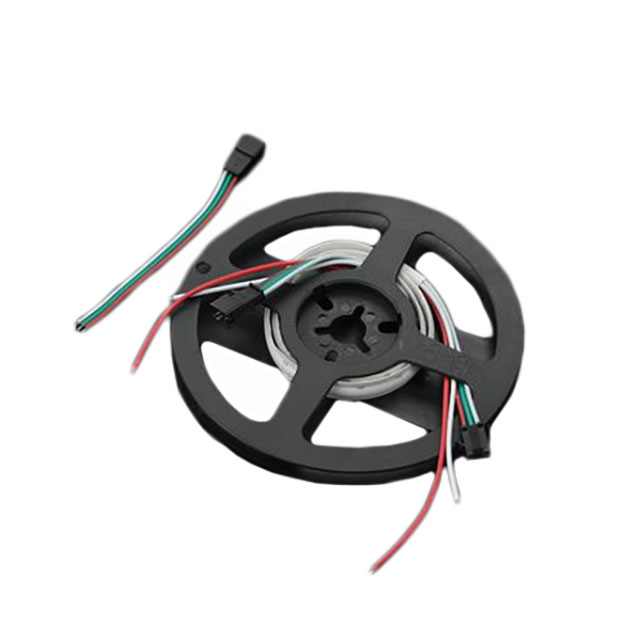

DFRobot FIT0750	500 mm		Flat	5 V	Blue Green Red	Linear Light Strip Flexible		LED Module	180 °		100 lm

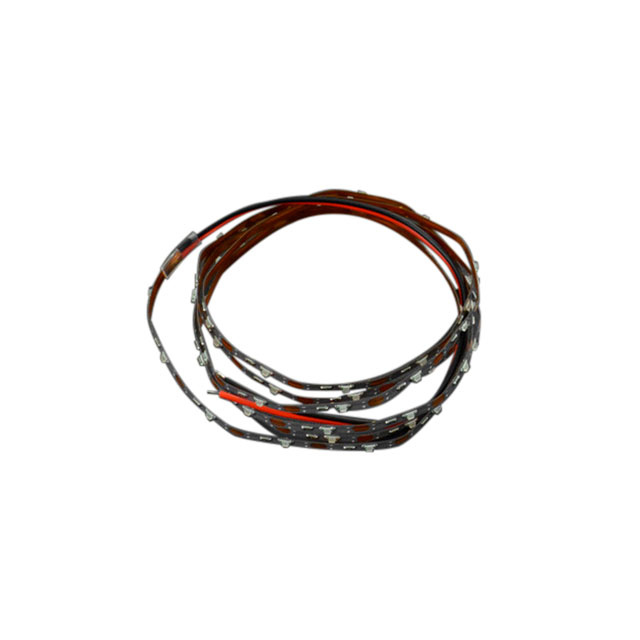

DFRobot FIT0837	1000 mm	2.5 mm	Flat	5 V	Red	Linear Light Strip Flexible	1 mm	LED Module

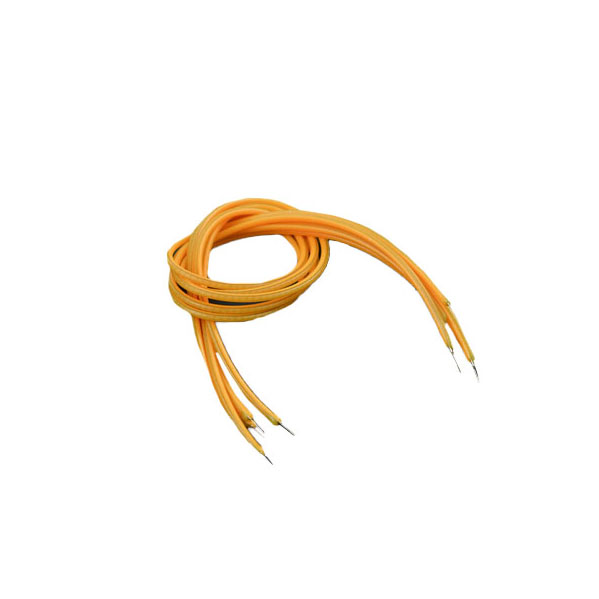

DFRobot FIT0812	257 mm	1.8 mm		3 V	Warm White	Linear Light Strip Flexible		LED Module		80 mA		2200 K

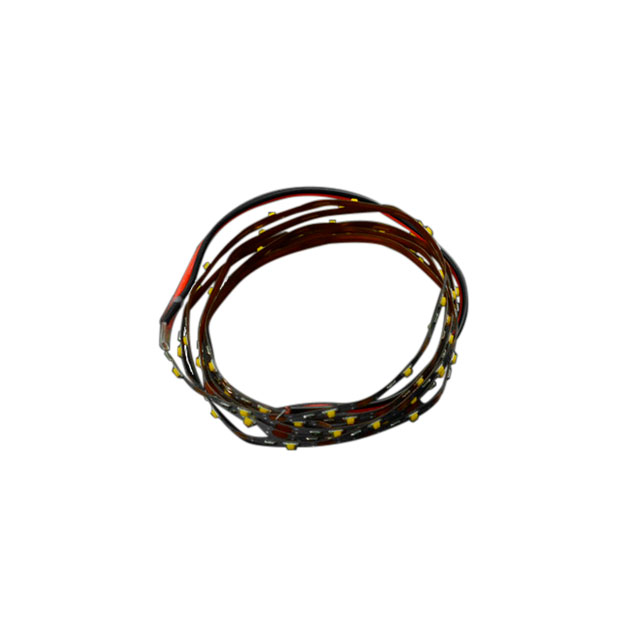

DFRobot FIT0836	1000 mm	2.5 mm	Flat	5 V	Warm White	Linear Light Strip Flexible	1 mm	LED Module

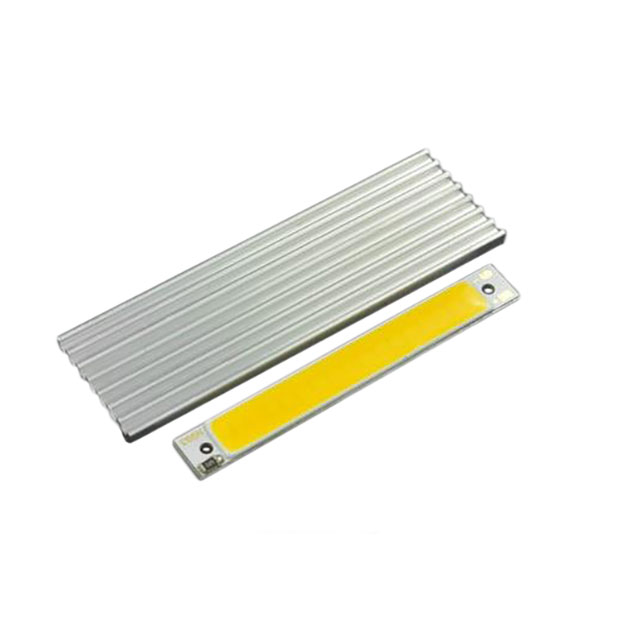

DFRobot FIT0876	60 mm	8 mm	Flat	5 V	Warm White	Linear Light Strip	1.7 mm	Chip On Board (COB)			300 lm	3000 K	100 lm/W	8 mm	50 mm	600 mA
