TLUG2401 Series

Catalog

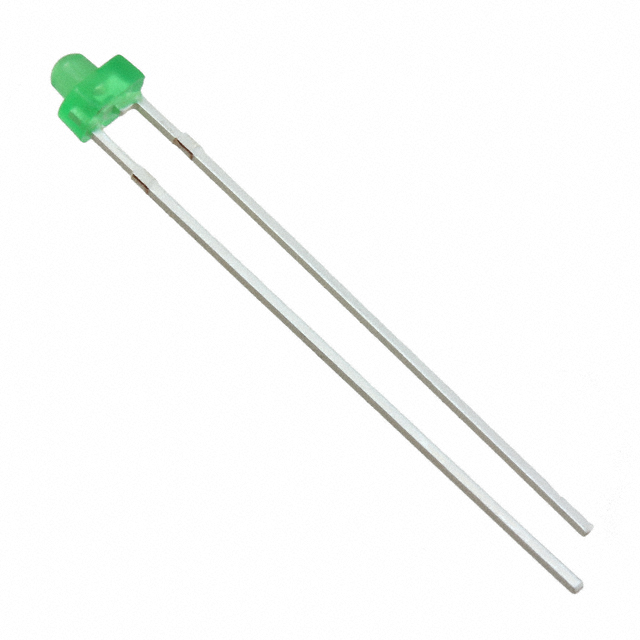

LED GREEN DIFFUSED 1.8MM T/H

Part	Voltage - Forward (Vf) (Typ)	Lens Transparency	Current - Test	Package / Case	Wavelength - Dominant	Millicandela Rating	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle [custom]	Height (Max) [Max] [z]	Configuration	Lens Size [diameter]	Mounting Type	Color	Supplier Device Package	Supplier Device Package	Lens Style
Vishay General Semiconductor - Diodes Division TLUG2401-AS12	2.4 V	Diffused	20 mA	Radial	568 nm	12 mcd	565 nm	3.3 mm	2.4 mm	40 °	3.6 mm	Standard	1.8 mm	Through Hole	Green	1.8 mm	Miniplast	Round with Domed Top
Vishay General Semiconductor - Diodes Division TLUG2401-AS12Z	2.4 V	Diffused	20 mA	Radial	568 nm	12 mcd	565 nm	3.3 mm	2.4 mm	40 °	3.6 mm	Standard	1.8 mm	Through Hole	Green	1.8 mm	Miniplast	Round with Domed Top
