QCCP501Q Series

Catalog

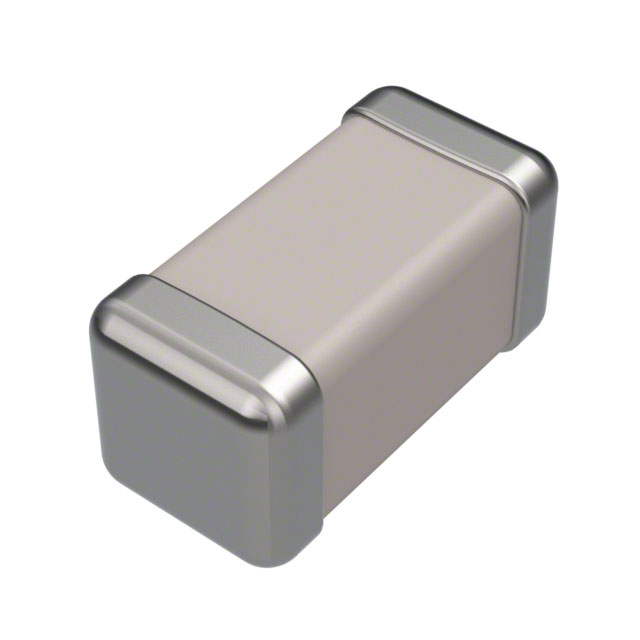

CAP CER 7.5PF 500V C0G/NP0 0603

Part	Mounting Type	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Features	Capacitance	Package / Case	Package / Case	Applications	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Voltage - Rated	Ratings
Johanson Technology Inc. QCCP501Q7R5C1GV001T	MLCC Surface Mount	C0G NP0	-55 C	150 °C	High Q Low Loss	7.5 pF	1608 Metric	0603	High Frequency Microwave RF	0.89 mm	0.035 "	0.81 mm	0.032 in	1.57 mm	0.062 in	0.25 pF	500 V
Johanson Technology Inc. QCCP501Q4R7A1GV002T	MLCC Surface Mount	C0G NP0	-55 C	150 °C	High Q Low Loss	4.7 pF	1608 Metric	0603	Automotive High Frequency Microwave RF	0.89 mm	0.035 "	0.81 mm	0.032 in	1.57 mm	0.062 in	0.05 pF	500 V	AEC-Q200
Johanson Technology Inc. QCCP501Q0R1D1GV002T	MLCC Surface Mount	C0G NP0	-55 C	150 °C	High Q Low Loss	0.1 pF	1608 Metric	0603	Automotive High Frequency Microwave RF	0.89 mm	0.035 "	0.81 mm	0.032 in	1.57 mm	0.062 in	0.5 pF	500 V	AEC-Q200
Johanson Technology Inc. QCCP501Q1R2B1GV001T	MLCC Surface Mount	C0G NP0	-55 C	150 °C	High Q Low Loss	1.2 pF	1608 Metric	0603	High Frequency Microwave RF	0.89 mm	0.035 "	0.81 mm	0.032 in	1.57 mm	0.062 in	0.1 pF	500 V
Johanson Technology Inc. QCCP501Q2R7B1GV001T	MLCC Surface Mount	C0G NP0	-55 C	150 °C	High Q Low Loss	2.7 pF	1608 Metric	0603	High Frequency Microwave RF	0.89 mm	0.035 "	0.81 mm	0.032 in	1.57 mm	0.062 in	0.1 pF	500 V
Johanson Technology Inc. QCCP501Q360J1GV001T	MLCC Surface Mount	C0G NP0	-55 C	150 °C	High Q Low Loss	36 pF	1608 Metric	0603	High Frequency Microwave RF	0.89 mm	0.035 "	0.81 mm	0.032 in	1.57 mm	0.062 in	5 %	500 V
Johanson Technology Inc. QCCP501Q330J1GV001T	MLCC Surface Mount	C0G NP0	-55 C	150 °C	High Q Low Loss	33 pF	1608 Metric	0603	High Frequency Microwave RF	0.89 mm	0.035 "	0.81 mm	0.032 in	1.57 mm	0.062 in	5 %	500 V
Johanson Technology Inc. QCCP501Q820J1GV001T	MLCC Surface Mount	C0G NP0	-55 C	150 °C	High Q Low Loss	82 pF	1608 Metric	0603	High Frequency Microwave RF	0.89 mm	0.035 "	0.81 mm	0.032 in	1.57 mm	0.062 in	5 %	500 V
Johanson Technology Inc. QCCP501Q100J1GV001T	MLCC Surface Mount	C0G NP0	-55 C	150 °C	High Q Low Loss	10 pF	1608 Metric	0603	High Frequency Microwave RF	0.89 mm	0.035 "	0.81 mm	0.032 in	1.57 mm	0.062 in	5 %	500 V
Johanson Technology Inc. QCCP501Q5R1B1GV001T	MLCC Surface Mount	C0G NP0	-55 C	150 °C	High Q Low Loss	5.1 pF	1608 Metric	0603	High Frequency Microwave RF	0.89 mm	0.035 "	0.81 mm	0.032 in	1.57 mm	0.062 in	0.1 pF	500 V
