Eval Board Series
Manufacturer: Rohm Semiconductor
Beta
⌘K
POWER MANAGEMENT IC DEVELOPMENT TOOLS ACCEPTS A POWER SUPPLY INPUT 4.5V TO 42V, GENERATES OUTPUT FROM 1V TO VCC, INPUT VOLTAGE RANGE OF 10V TO 42V AND A FIXED OUTPUT OF 5V CAN BE PRODUCED.
| Part | Current - Output | Utilized IC / Part | Contents | Voltage - Output | Frequency - Switching | Main Purpose | Regulator Topology | Outputs and Type | Voltage - Input [Min] | Voltage - Input [Max] | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|

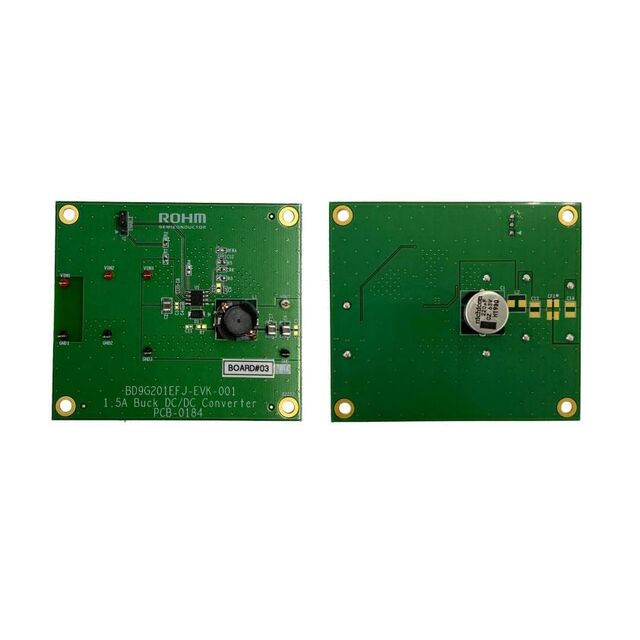

 Rohm Semiconductor | 1.5 A | BD9G201 | Board(s) | 5 V | 300 kHz | DC/DC Step Down | Buck | 1 Non-Isolated Output | 10 V | 42 V | |
 Rohm Semiconductor | 2 A | BM2SC124 | Board(s) | 24 V | AC/DC Converter | Flyback | 1 Non-Isolated Output | 210 VAC 300 V | 480 VAC 900 V | 48 W | |

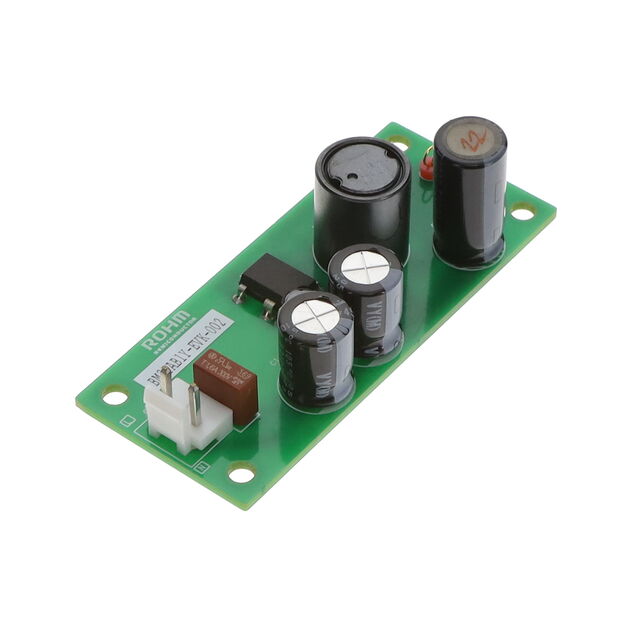

 Rohm Semiconductor | 600 mA | BM2PAB1Y | Board(s) | 5 V | 25 kHz | AC/DC Converter | Buck | 1 Non-Isolated Output | 90 VAC | 264 VAC | 3.3 W |
