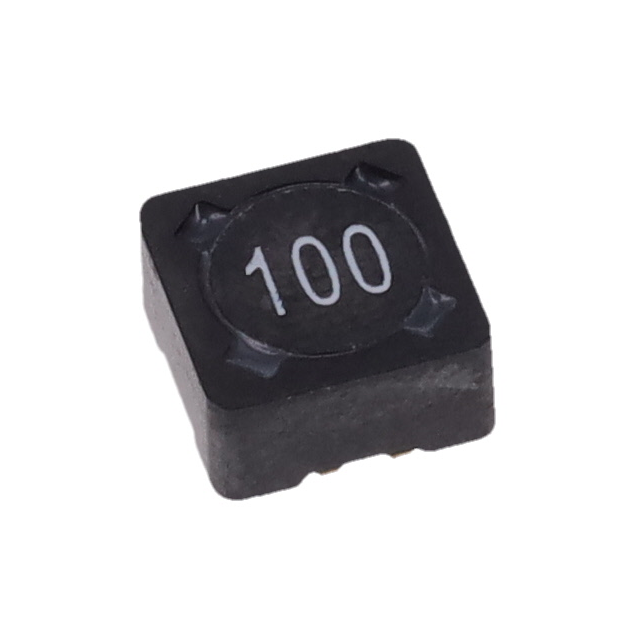

MGDQ4 Series
Manufacturer: TE Connectivity AMP Connectors
Catalog
FIXED IND 10UH 49 MOHM SMD
| Part | Mounting Type | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Inductance | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Tolerance | DC Resistance (DCR) | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Surface Mount | Nonstandard | 4.5 mm | 0.177 in | 10 µH | 7.5 mm | 0.295 " | 0.295 in | 7.5 mm | 20 % | 49 mOhm | 85 °C | -40 C |
