IPLK60 Series
Manufacturer: INFINEON
Beta
⌘K

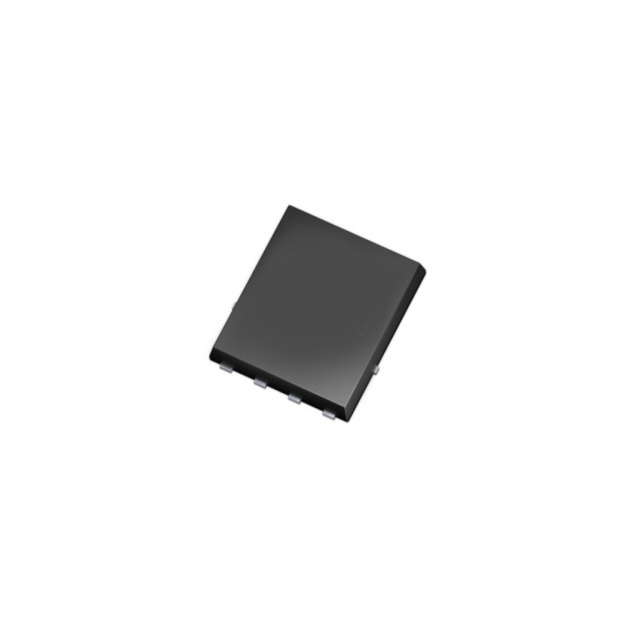

COOLMOS™ PFD7 N-CHANNEL SUPERJUNCTION MOSFET 600 V ; THINPAK 5X6 PACKAGE; 600 MOHM; PRICE/PERFORMANCE
| Part | Gate Charge (Qg) (Max) @ Vgs [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | FET Type | Drive Voltage (Max Rds On, Min Rds On) | Drain to Source Voltage (Vdss) | Vgs(th) (Max) @ Id | Mounting Type | Technology | Package / Case | Input Capacitance (Ciss) (Max) @ Vds | Power Dissipation (Max) | Vgs (Max) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Input Capacitance (Ciss) (Max) @ Vds [Max] | Gate Charge (Qg) (Max) @ Vgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 8.5 nC | 150 °C | -55 °C | PG-TDSON-8-52 | N-Channel | 10 V | 600 V | 4.5 V | Surface Mount | MOSFET (Metal Oxide) | 8-PowerTDFN | 344 pF | 45 W | 20 V | 7 A | 600 mOhm | ||
 INFINEON | 4.6 nC | 150 °C | -55 °C | PG-TDSON-8-52 | N-Channel | 10 V | 600 V | 4.5 V | Surface Mount | MOSFET (Metal Oxide) | 8-PowerTDFN | 25 W | 20 V | 3.8 A | 1.5 Ohm | 169 pF | ||
INFINEON | 150 °C | -55 °C | PG-TDSON-8-52 | N-Channel | 10 V | 600 V | 4.5 V | Surface Mount | MOSFET (Metal Oxide) | 8-PowerTDFN | 31.3 W | 20 V | 5.2 A | 1 Ohm | 230 pF | 6 nC |
