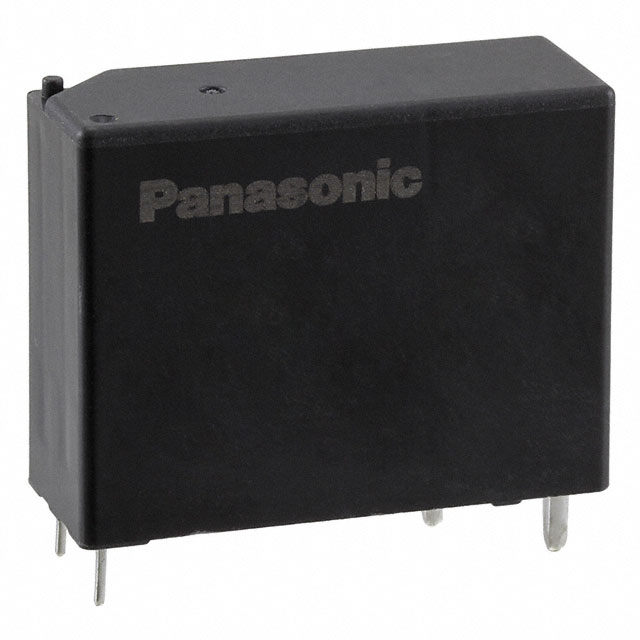

ADJH22 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
POWER RELAY, SPST-NO, 12 VDC, 50 A, DJ-H (ADJH) SERIES, THROUGH HOLE, LATCHING SINGLE COIL
| Part | Coil Resistance | Release Time | Load - Max Switching | Contact Rating (Current) | Relay Type | Contact Material | Coil Current | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Seal Rating | Approval Agency | Mounting Type | Must Operate Voltage | Features | Coil Type | Termination Style | Contact Form | Switching Voltage [Max] | Coil Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 144 Ohms | 20 ms | 24000 VA | 50 A | General Purpose | Silver Tin Oxide (AgSnO) | 83.3 mA | 12 VDC | 85 °C | -40 C | 20 ms | Sealed - Flux Protection | cURus VDE | Through Hole | 9 VDC | Test Button | Latching Single Coil | PC Pin | SPST-NO (1 Form A) | 480 VAC | Class F |
 Panasonic Electronic Components | 25 Ohms | 20 ms | 24000 VA | 50 A | General Purpose | Silver Tin Oxide (AgSnO) | 200 mA | 5 VDC | 85 °C | -40 C | 20 ms | Sealed - Flux Protection | cURus VDE | Through Hole | 3.75 VDC | Latching Single Coil | PC Pin | SPST-NO (1 Form A) | 480 VAC | Class F |
