8C3011 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K

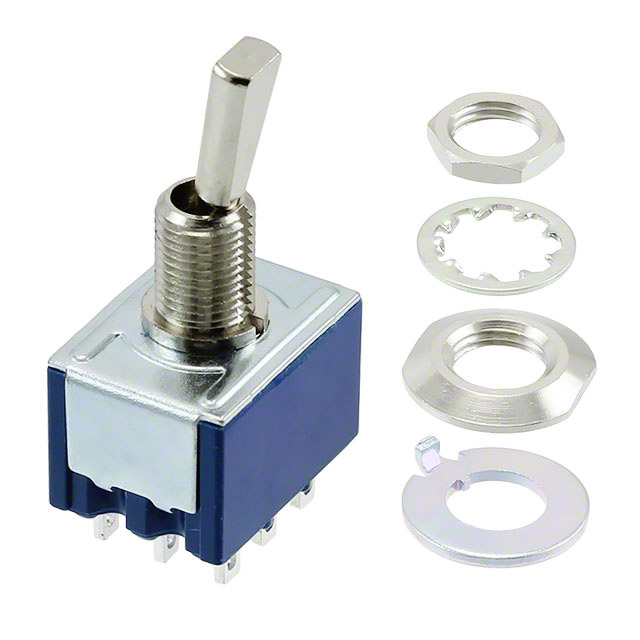

TOGGLE SWITCHES 3PDT, ON-ON, 11.4MM FLATTED TOGGLE, 1/4"-40 THREADED BUSHING, SOLDER LUG TERMINALS, 6A @ 125V AC
| Part | Electrical Life | Bushing Thread | Termination Style | Illumination | Switch Function | Voltage Rating - AC | Features | Mounting Type | Actuator Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Circuit | Voltage Rating - DC | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 50000 Cycles | 1/4-40 | Solder Lug | Non-Illuminated | On-On | 125 V | Sealed - Flux Protection | Panel Mount | 11.4 mm | 85 °C | -30 ░C | 6.5 mm | 4 A 6 A | 3PDT | 30 V | Flat Anti-Rotation |
