30316 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K
CONN HEADER VERT 16POS 2.54MM
| Part | Contact Finish Thickness - Post | Number of Rows [custom] | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Fastening Type | Shrouding | Number of Positions | Features | Style | Contact Finish Thickness - Mating | Connector Type | Number of Positions Loaded | Insulation Color | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height | Termination | Contact Type | Contact Shape | Contact Length - Post [custom] | Contact Length - Post | Contact Material | Insulation Material | Material Flammability Rating | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | Flash | 2 | Gold | -55 C | 105 ░C | Through Hole | 0.1 in | 2.54 mm | Push-Pull | Shrouded - 4 Wall | 16 | Keying Slot | Board to Board Cable | Flash | Header | All | Black | Gold | 0.1 " | 2.54 mm | 6 mm | 0.236 in | 9.3 mm | 0.366 " | Solder | Male Pin | Square | 0.11 in | 2.79 mm | Brass | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | |

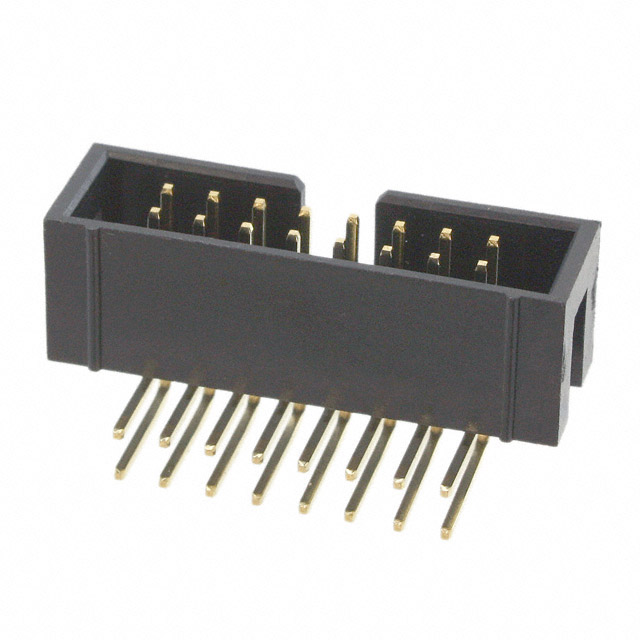

 3M Electronic Specialty | Flash | 2 | Gold | -55 C | 105 ░C | Right Angle Through Hole | 0.1 in | 2.54 mm | Push-Pull | Shrouded - 4 Wall | 16 | Keying Slot | Board to Board Cable | Flash | Header | All | Black | Gold | 0.1 " | 2.54 mm | 6 mm | 0.236 in | 8.4 mm | Solder | Male Pin | Square | 0.11 in | 2.79 mm | Brass | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | 0.331 in |
