PAXLC Series

Catalog

COUNTER, DIGITAL INPUT, MODEL PAX, 6 DIGITS, LCD, 10 VDC TO 16 VDC, 6 VA

Part	Operating Temperature [Min]	Operating Temperature [Max]	Weight [custom]	Weight [custom]	Type	Operating Mode	Count Rate	Termination Style	Mounting Type	Reset	Input Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Display Characters - Height [custom]	Display Characters - Height [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Display Type	Number of Characters Per Row [custom]	Output Type	Count Rate
Red Lion Controls PAXLC600	0 °C	60 °C	340.19 g	0.75 lb	Totalizer	Down Up	25 kHz	Screw Terminal	Panel Mount	External Front Panel	No Voltage	45 mm	92 mm	14.2 mm	0.56 in	230 VAC	115 VAC	IP66 - Dust Tight Water Resistant	LED Red Characters	6

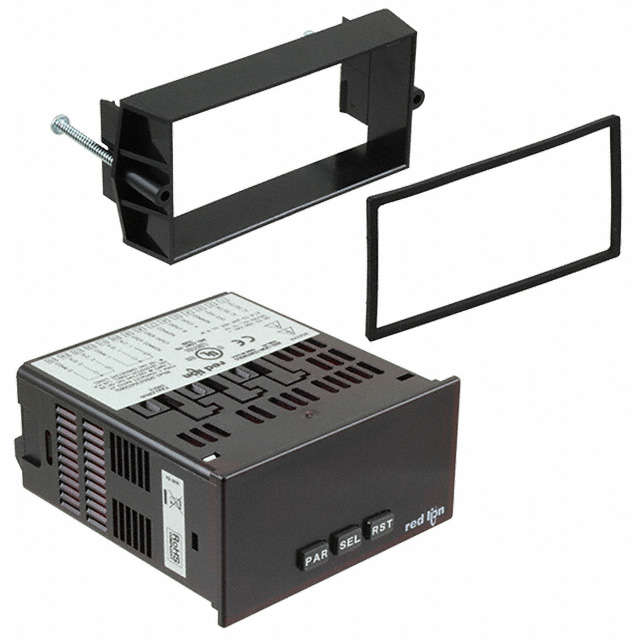

Red Lion Controls PAXLCRU0	0 °C	50 °C			Batch Preset Tachometer Totalizer	Command Down Individual Quadrature Up	25 kHz	Screw Terminal	Panel Mount	External Front Panel Programmable	No Voltage Voltage	45 mm	92 mm	14.2 mm	0.56 in	250 VDC 250 VAC	21.6 VDC 50 VAC	IP66 - Dust Tight Water Resistant	LED Red Characters	6	Relay (2)	50 Hz
