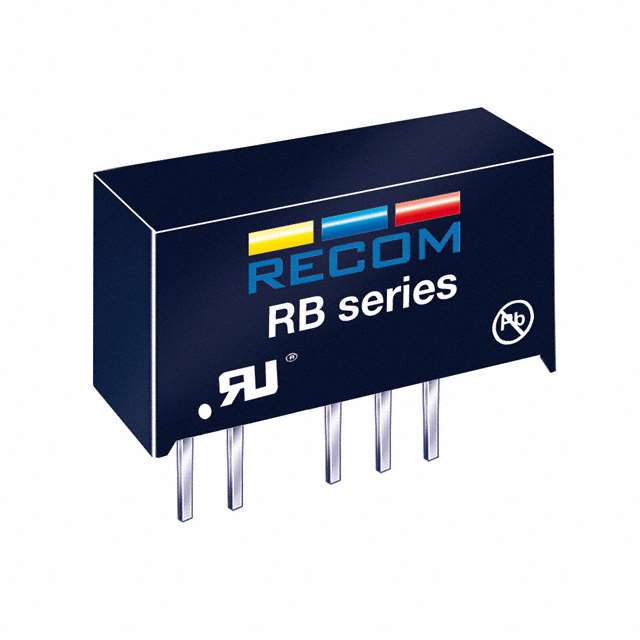

RB Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 1KV UNREG 3.3VIN +/-15VOUT

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 2	Applications	Current - Output (Max) [Max]	Current - Output (Max) [Min]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Type	Number of Outputs	Mounting Type	Voltage - Isolation	Package / Case	Features	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)

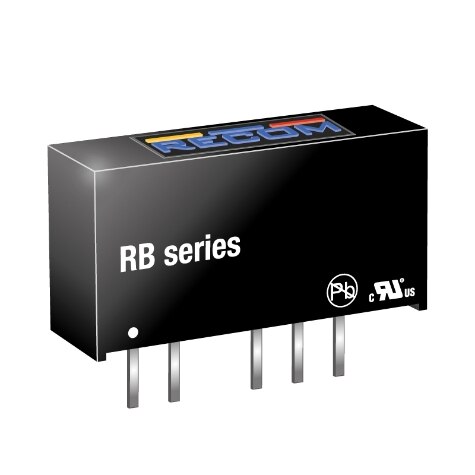

Recom Power RB-3.315D/P	85 °C	-40 C	15 V	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	-15 V	ITE (Commercial)	33 mA	33 mA	3.6 V	3 V	84 %	Isolated Module	2	Through Hole	1000 V	7-SIP Module 5 Leads	SCP
Recom Power RB-0512S	85 °C	-40 C	12 V	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm		ITE (Commercial)	84 mA		5.5 V	4.5 V	80 %	Isolated Module	1	Through Hole	1000 V	7-SIP Module 5 Leads	SCP
Recom Power RB-0505S/H	85 °C	-40 C	5 V	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm		ITE (Commercial) Medical	200 mA		5.5 V	4.5 V	78 %	Isolated Module	1	Through Hole	2000 V	7-SIP Module 5 Leads	SCP
Recom Power RB-2405D/H	85 °C	-40 C	5 V	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	-5 V	ITE (Commercial) Medical			26.4 V	21.6 V	78 %	Isolated Module	2	Through Hole	2000 V	7-SIP Module 5 Leads	SCP	100 mA	100 mA
Recom Power RB-3.309D/H	85 °C	-40 C	9 V	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	-9 V	ITE (Commercial) Medical	56 mA		3.6 V	3 V	79 %	Isolated Module	2	Through Hole	2000 V	7-SIP Module 5 Leads	SCP
Recom Power RB-053.3S/H	85 °C	-40 C	3.3 V	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm		ITE (Commercial) Medical	303 mA		5.5 V	4.5 V	75 %	Isolated Module	1	Through Hole	2000 V	7-SIP Module 5 Leads	SCP
Recom Power RB-2409D/HP	85 °C	-40 C	9 V	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	-9 V	ITE (Commercial) Medical	56 mA		26.4 V	21.6 V	79 %	Isolated Module	2	Through Hole	2000 V	7-SIP Module 5 Leads	SCP
Recom Power RB-1224S/P	85 °C	-40 C	24 V	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm		ITE (Commercial)	42 mA		13.2 V	10.8 V	85 %	Isolated Module	1	Through Hole	1000 V	7-SIP Module 5 Leads	SCP
Recom Power RB-1524D/HP	85 °C	-40 C	24 V	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	-24 V	ITE (Commercial) Medical			16.5 V	13.5 V	84 %	Isolated Module	2	Through Hole	2000 V	7-SIP Module 5 Leads	SCP			21 mA
Recom Power RB-243.3D	85 °C	-40 C	3.3 V	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	-3.3 V	ITE (Commercial)			26.4 V	21.6 V	70 %	Isolated Module	2	Through Hole	1000 V	7-SIP Module 5 Leads	SCP		152 mA	152 mA
