MS3101A14 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

AB 2C 2#16S SKT RECP

Part	Shielding	Ingress Protection	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Orientation	Shell Material	Shell Finish	Voltage Rating (AC)	Voltage Rating (DC)	Color	Shell Size - Insert	Termination	Mounting Type	Connector Type	Contact Finish - Mating	Primary Material	Number of Positions	Qualification	Insert Material	Contact Material	Applications	Backshell Material	Plating	Features	Current Rating	Grade	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)
Amphenol Aerospace Operations MS3101A14S-9SW
Amphenol Aerospace Operations MS3101A14S-6P-RES	Unshielded	Environment Resistant	Threaded	125 °C	-55 °C	N (Normal)	Aluminum Alloy	Cadmium Olive Drab Chromate	200 VAC	250 VDC	Olive Drab	14S-6	Solder Cup	Free Hanging (In-Line)	Male Pins Receptacle	Silver	Metal	6	MIL-5015	Neoprene	Copper Alloy	Marine Military
Amphenol Aerospace Operations MS3101A14S-A7P-RES	Unshielded	Environment Resistant	Threaded	125 °C	-55 °C	N (Normal)	Aluminum Alloy	Cadmium Olive Drab Chromate	500 VAC	700 VDC	Olive Drab	14S-7	Solder Cup	Free Hanging (In-Line)	Male Pins Receptacle	Silver	Metal	3	MIL-5015	Neoprene	Copper Alloy	Marine Military

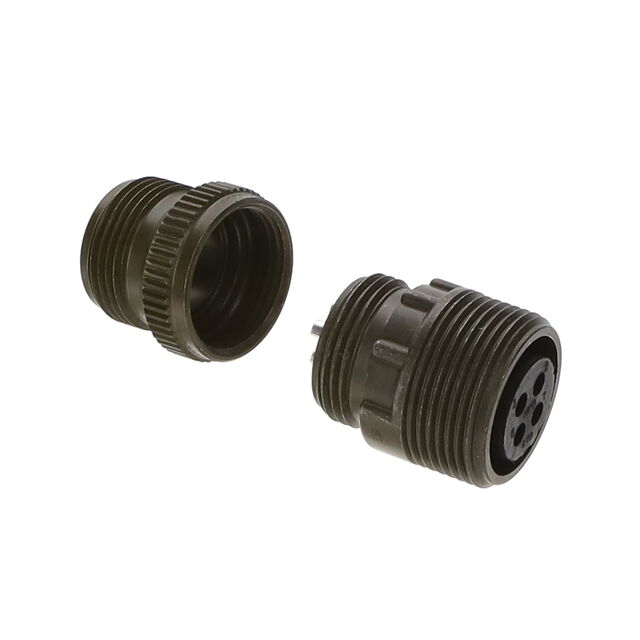

Amphenol Aerospace Operations MS3101A14S-2S	Unshielded		Threaded	125 °C	-55 °C	N (Normal)	Aluminum Alloy	Cadmium Olive Drab Chromate			Olive Drab	14S-2	Solder Cup	Free Hanging (In-Line)	Female Sockets Receptacle	Silver	Metal	4	MIL-5015	Neoprene	Copper Alloy	Marine Military	Aluminum Alloy	Olive Drab Chromate over Cadmium	Backshell
Amphenol Aerospace Operations MS3101A14S-1S	Unshielded	Environment Resistant	Threaded	125 °C	-55 °C	N (Normal)	Aluminum Alloy	Cadmium Olive Drab Chromate			Olive Drab	14S-1	Solder Cup	Free Hanging (In-Line)	Female Sockets Receptacle	Silver	Metal	3	MIL-DTL-5015	Neoprene	Copper Alloy	Marine Military			Backshell	13 A	Military
Amphenol Aerospace Operations MS3101A14S-9S-RES
Amphenol Aerospace Operations MS3101A14S-9PW
Amphenol Aerospace Operations MS3101A14S-9PX
Amphenol Aerospace Operations MS3101A14S-9P-RES	Unshielded	Environment Resistant	Threaded	125 °C	-55 °C	N (Normal)	Aluminum Alloy	Cadmium Olive Drab Chromate	500 VAC	700 VDC	Olive Drab	14S-9	Solder Cup	Free Hanging (In-Line)	Male Pins Receptacle	Silver	Metal	2	MIL-5015	Neoprene	Copper Alloy	Marine Military
Amphenol Aerospace Operations MS3101A14S-4S-RES	Unshielded	Environment Resistant	Threaded	125 °C	-55 °C	N (Normal)	Aluminum Alloy	Cadmium Olive Drab Chromate	900 VAC	1250 VDC	Olive Drab	14S-4	Solder Cup	Free Hanging (In-Line)	Female Sockets Receptacle	Silver	Metal	1	MIL-5015	Neoprene	Copper Alloy	Marine Military						4 S	14 S
