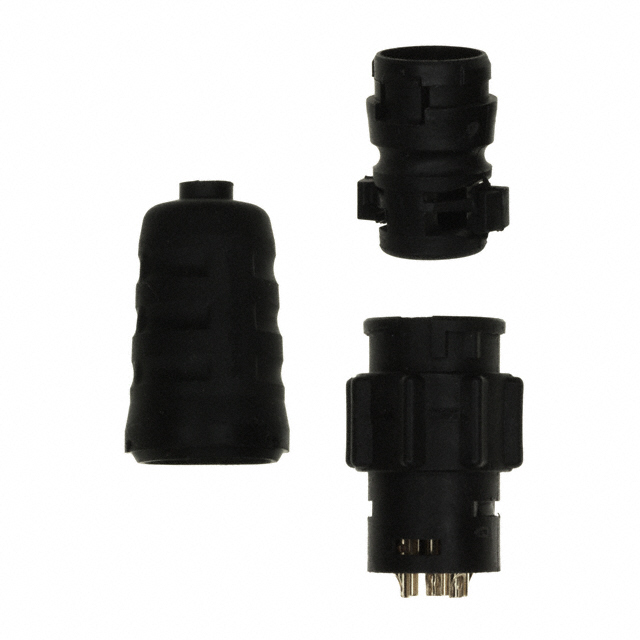

EN3L6F Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
CIRCULAR CONNECTOR, EN3 SERIES, CABLE MOUNT PLUG, 6 CONTACTS, SOLDER SOCKET, BAYONET
| Part | Number of Positions | Fastening Type | Features | Backshell Material, Plating | Current Rating (Amps) | Shielding | Contact Finish - Mating | Applications | Color | Primary Material | Mounting Type | Material Flammability Rating | Contact Material | Insert Material | Ingress Protection | Orientation | Voltage Rating | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 6 | Bayonet Lock | Backshell Cable Clamp | Thermoplastic | 7.5 A | Unshielded | Gold | General Purpose Instrumentation Marine Medical | Black | Plastic | Free Hanging (In-Line) | UL94 V-0 | Copper Alloy | Elastomer | IP66 IP68 | Keyed | 250 VAC | Receptacle Female Sockets | -40 C | 65 °C | 4.06 mm | 0.265 in | 0.16 " | 6.73 mm |
