38204 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

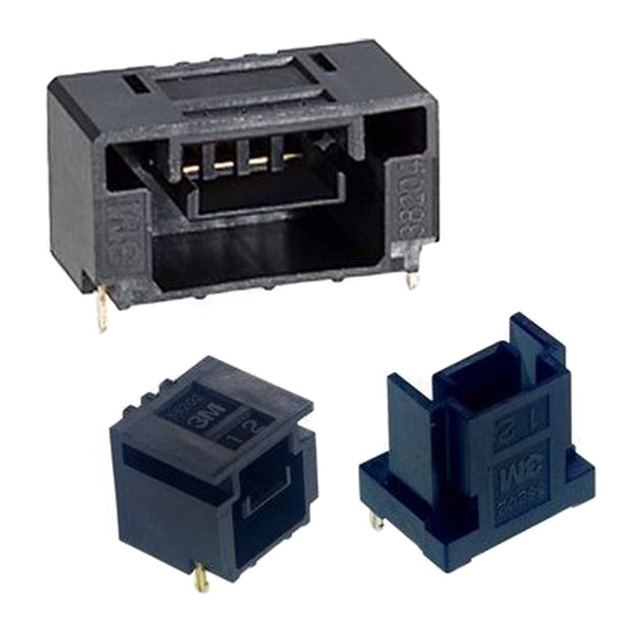

PCB RECEPTACLE, WIRE-TO-BOARD, 2.54 MM, 1 ROWS, 4 CONTACTS, THROUGH HOLE MOUNT, 382 SERIES
| Part | Contact Material | Contact Shape | Insulation Material | Contact Finish Thickness - Post | Applications | Material Flammability Rating | Insulation Color | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Fastening Type | Number of Positions Loaded | Contact Finish - Post | Number of Rows | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Features | Connector Type | Insulation Height | Insulation Height | Style | Current Rating (Amps) | Voltage Rating | Termination | Contact Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | Copper Alloy | Square | Polybutylene Terephthalate (PBT) | Flash | Automotive General Purpose Industrial Lighting | UL94 V-0 | Black | Gold | 0.1 " | 2.54 mm | Latch Holder | All | Gold | 1 | Through Hole | 8 µin | 0.203 µm | -20 ░C | 70 °C | 0.1 in | 2.54 mm | Board Lock | Receptacle | 13 mm | 0.512 in | Board to Cable/Wire | 5 A | 160 V | Solder | Female Socket | 4 |
 3M Electronic Specialty | Copper Alloy | Square | Polybutylene Terephthalate (PBT) | Flash | Automotive General Purpose Industrial Lighting | UL94 V-0 | Blue | Gold | 0.1 " | 2.54 mm | Latch Holder | All | Gold | 1 | Through Hole | 8 µin | 0.203 µm | -20 ░C | 70 °C | 0.1 in | 2.54 mm | Board Lock | Receptacle | 13 mm | 0.512 in | Board to Cable/Wire | 5 A | 160 V | Solder | Female Socket | 4 |
