IN-C33 Series

Catalog

LED IN-C33 RED 625NM 3535

Part	Temperature - Test	Current - Max [Max]	Mounting Type	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Color	Wavelength	Current - Test	Package / Case	Viewing Angle	Supplier Device Package	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]	Wavelength [Max]	Wavelength [Min]	Orientation	Type	Operating Temperature	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]
Inolux Corporation IN-C33CTLR	25 °C	700 mA	Surface Mount	65 lm/W	0.138 in	0.138 in	3.5 mm	3.5 mm	Red	625 nm	350 mA	1414 (3535 Metric)	120 °	3535	50 lm	2.2 V

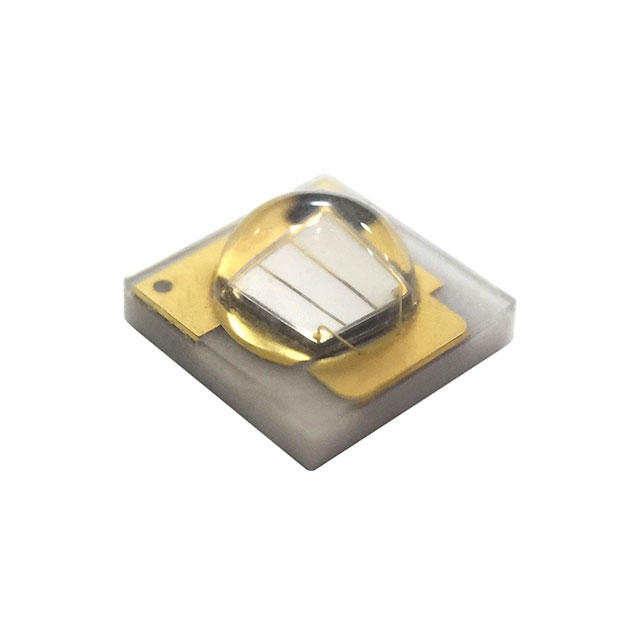

Inolux Corporation IN-C33CTOIR			Surface Mount									1414 (3535 Metric)	120 °			2.4 V	1 A	860 nm	850 nm	Top View	Infrared (IR)	125 ¯C
Inolux Corporation IN-C33BTLY	25 °C	700 mA	Surface Mount	78 lm/W	0.138 in	0.138 in	3.5 mm	3.5 mm	Yellow	590 nm	350 mA	1414 (3535 Metric)	60 °	3535	60 lm	2.2 V							0.115 in	2.93 mm
Inolux Corporation IN-C33ETLR	25 °C	700 mA	Surface Mount	65 lm/W	0.138 in	0.138 in	3.5 mm	3.5 mm	Red	625 nm	350 mA	1414 (3535 Metric)	90 °	3535	50 lm	2.2 V								2.46 mm	0.097 in
Inolux Corporation IN-C33BTLRB	25 °C	700 mA	Surface Mount	21 lm/W	0.138 in	0.138 in	3.5 mm	3.5 mm	Blue	455 nm	350 mA	1414 (3535 Metric)	60 °	3535	23 lm	3.2 V							0.115 in	2.93 mm
Inolux Corporation IN-C33BTLB	25 °C	700 mA	Surface Mount	27 lm/W	0.138 in	0.138 in	3.5 mm	3.5 mm	Blue	465 nm	350 mA	1414 (3535 Metric)	60 °	3535	30 lm	3.2 V							0.115 in	2.93 mm
