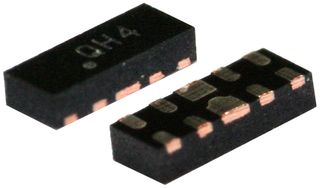

SP3010-04UTG Series

4Ch 0.45pF 8kV 5V Diode Array uDFN

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

4Ch 0.45pF 8kV 5V Diode Array uDFN

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Reverse Standoff (Typ) [Max]	Unidirectional Channels [custom]	Mounting Type	Applications	Power Line Protection	Current - Peak Pulse (10/1000µs)	Package / Case	Type	Voltage - Clamping (Max) @ Ipp

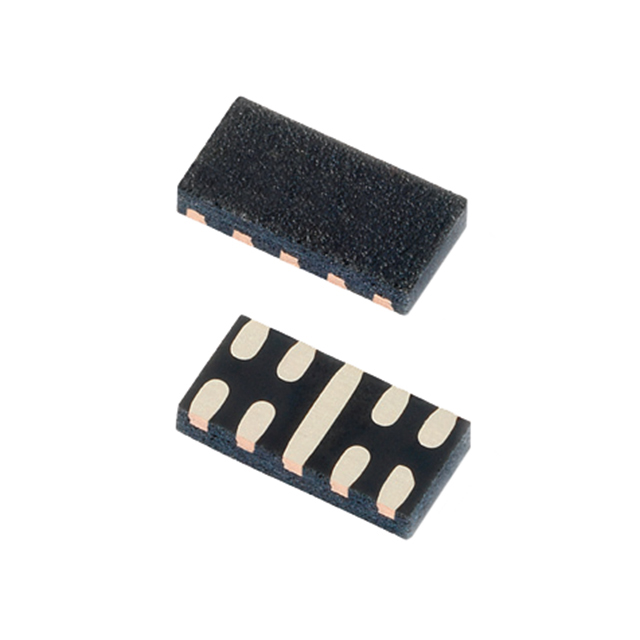

Littelfuse/Commercial Vehicle Products SP3010-04UTG	10-µDFN (2.5x1.0)	-40 °C	125 ¯C	6 V	4	Surface Mount	General Purpose		3 A	10-UFDFN	Steering	12.3 V

Catalog

4Ch 0.45pF 8kV 5V Diode Array uDFN

Key Features

• ESD, IEC 61000-4-2, ±8kV contact, ±15 kV air

• IEC 61000-4-4 EFT protection: 40 A (5/50 ns)

• Lightning, IEC 61000-4-5 2nd edition, 3A (tP=8/20μs)

• Low capacitance of 0.45pF (TYP) per I/O

• Low leakage current of 0.1μA (TYP) at 5V

• Small form factor μDFN( JEDEC MO-229) package saves board space

• RoHS compliant and lead-free

• AEC-Q101 qualified

Description

The SP3010-04UTG integrates 4 channels of ultra-low capacitance rail-to-rail diodes and an additional zener diode to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). This robust device can safely absorb repetitive ESD strikes at the maximum level specified in the IEC61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation. The extremely low loading capacitance also makes it ideal for protecting high speed signal pins such as HDMI, USB3.0, USB2.0, and IEEE 1394.
