1504 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

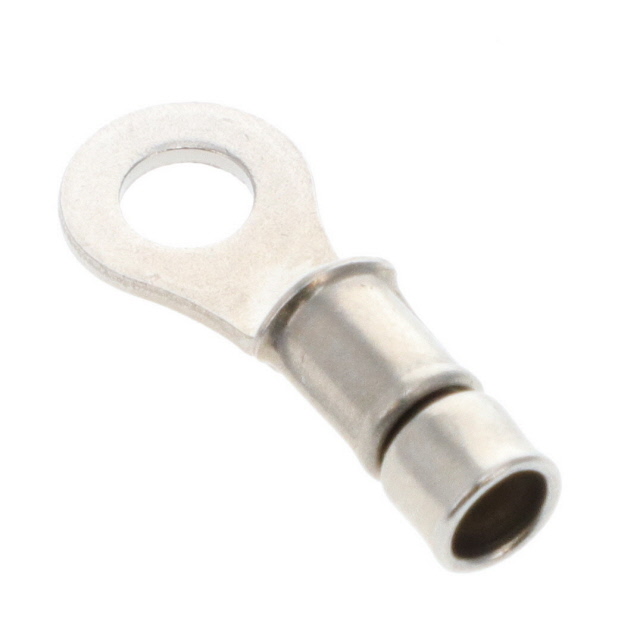

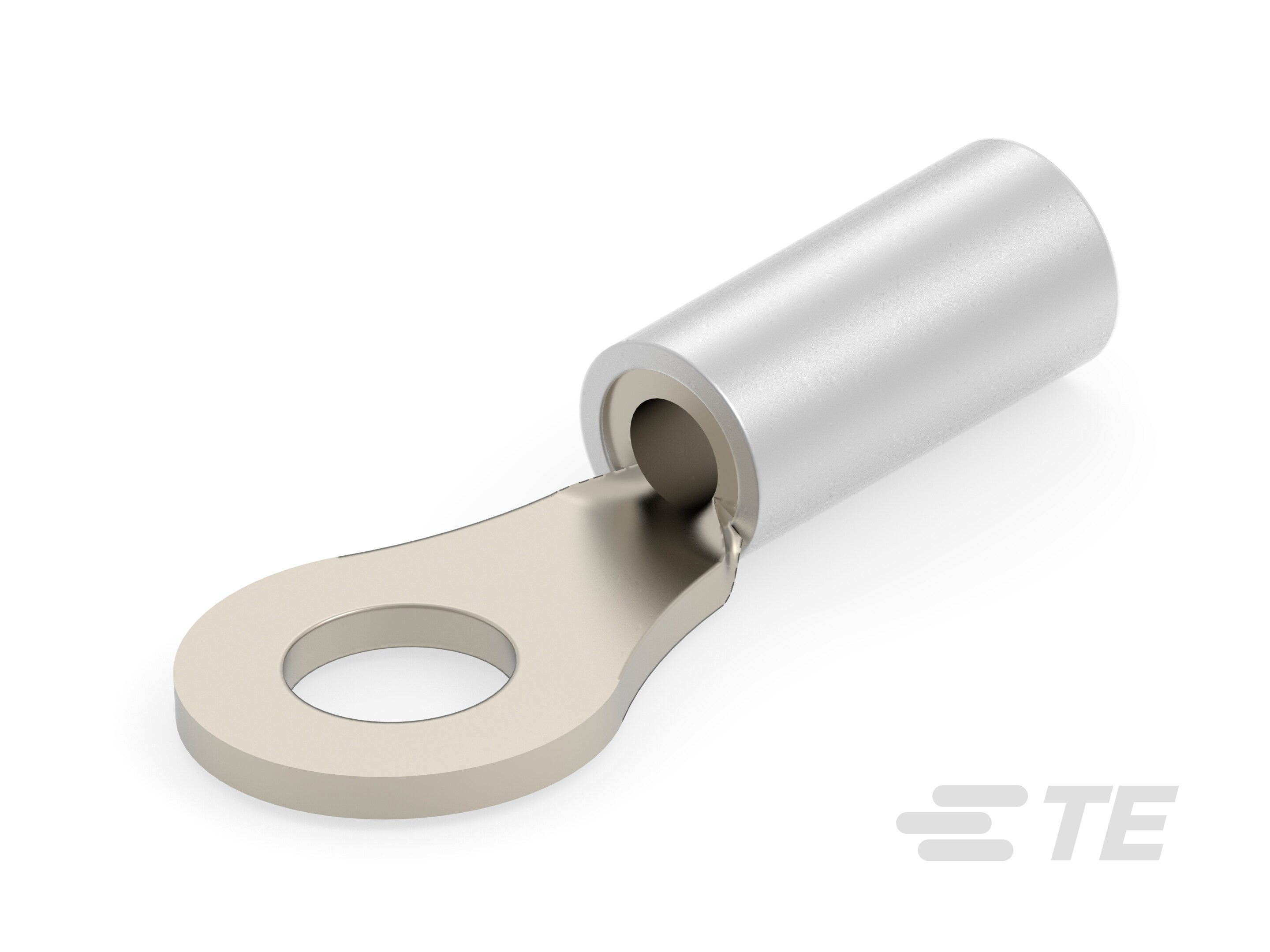

TERM, RT,STRAT,DGRP, HR, 22-16, M3.5(#6)
| Part | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Length - Overall [x] | Length - Overall [x] | Mounting Type | Insulation | Thickness | Thickness | Features | Wire Gauge [Min] | Wire Gauge [Max] | Width - Outer Edges [x] | Width - Outer Edges [x] | Contact Material | Stud/Tab Size | Terminal Type | Termination | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.11 in | 0.051 " | 2.79 mm | 1.3 mm | 0.779 in | 19.79 mm | Free Hanging (In-Line) | Non-Insulated | 0.79 mm | 0.031 in | Serrated Termination | 16 AWG | 22 AWG | 7.14 mm | 0.281 in | Copper | M3.5 Stud | Circular | Crimp | Nickel |
