S-5715 Series

Catalog

MAGNETIC SWITCH UNIPOLAR SNT-4A

Part	Mounting Type	Current - Supply (Max) [Max]	Test Condition	Output Type	Package / Case	Supplier Device Package	Sensing Range	Function	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Polarization	Technology
ABLIC Inc. S-5715CNSL1-I4T1U	Surface Mount	20 µA	25 °C	Open Drain	4-SMD Flat Leads	SNT-4A	1.1 mT 4 mT	Unipolar Switch	2 mA	85 C	-40 ¯C	5.5 V	2.7 V	South Pole	Hall Effect
ABLIC Inc. S-5715ECDL1-I4T1U	Surface Mount	2 mA	25 °C	Push-Pull	4-SMD Flat Leads	SNT-4A	3.7 mT 4 mT	Omnipolar Switch	2 mA	85 C	-40 ¯C	5.5 V	2.7 V	North Pole South Pole	Hall Effect

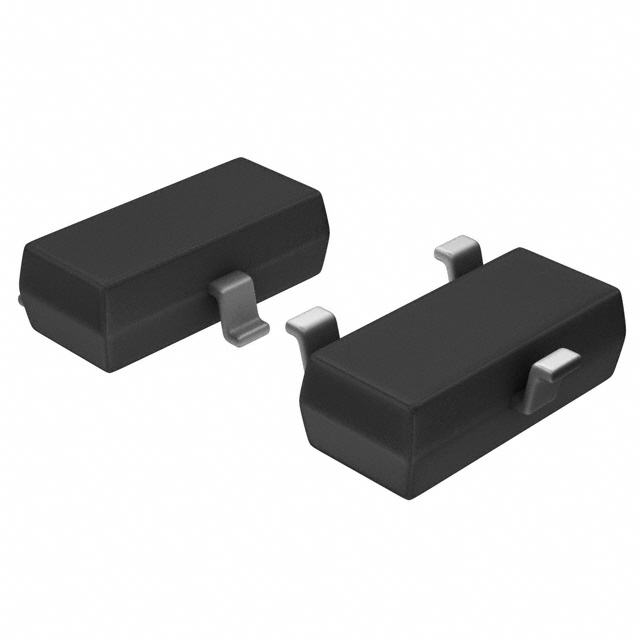

ABLIC Inc. S-5715ECSL1-M3T1U	Surface Mount	2 mA	25 °C	Push-Pull	SC-59 SOT-23-3 TO-236-3	SOT-23-3	1.1 mT 4 mT	Unipolar Switch	2 mA	85 C	-40 ¯C	5.5 V	2.7 V	South Pole	Hall Effect
ABLIC Inc. S-5715ENDL1-M3T1U	Surface Mount	2 mA	25 °C	Open Drain	SC-59 SOT-23-3 TO-236-3	SOT-23-3	3.7 mT 4 mT	Omnipolar Switch	2 mA	85 C	-40 ¯C	5.5 V	2.7 V	North Pole South Pole	Hall Effect
ABLIC Inc. S-5715DCSL1-M3T1U	Surface Mount	20 µA	25 °C	Push-Pull	SC-59 SOT-23-3 TO-236-3	SOT-23-3	1.1 mT 4 mT	Unipolar Switch	2 mA	85 C	-40 ¯C	5.5 V	2.7 V	South Pole	Hall Effect
ABLIC Inc. S-5715DNDL1-I4T1U	Surface Mount	230 µA	25 °C	Open Drain	4-SMD Flat Leads	SNT-4A	3.7 mT 4 mT	Omnipolar Switch	2 mA	85 C	-40 ¯C	5.5 V	2.7 V	North Pole South Pole	Hall Effect
ABLIC Inc. S-5715CCSL1-M3T1U	Surface Mount	20 µA	25 °C	Push-Pull	SC-59 SOT-23-3 TO-236-3	SOT-23-3	1.1 mT 4 mT	Unipolar Switch	2 mA	85 C	-40 ¯C	5.5 V	2.7 V	South Pole	Hall Effect
ABLIC Inc. S-5715DNDL1-M3T1U	Surface Mount	230 µA	25 °C	Open Drain	SC-59 SOT-23-3 TO-236-3	SOT-23-3	3.7 mT 4 mT	Omnipolar Switch	2 mA	85 C	-40 ¯C	5.5 V	2.7 V	North Pole South Pole	Hall Effect
ABLIC Inc. S-5715CCDL1-M3T1U	Surface Mount	40 µA	25 °C	Push-Pull	SC-59 SOT-23-3 TO-236-3	SOT-23-3	3.7 mT 4 mT	Omnipolar Switch	2 mA	85 C	-40 ¯C	5.5 V	2.7 V	North Pole South Pole	Hall Effect
