130145 Series

Manufacturer: Molex

Catalog

HI-AMP TURNEX L7-20 YELLOW CONNE

Part	Current Rating (Amps)	Mounting Type	Connector Type	Features	Voltage Rating	Voltage Rating	Connector Style	Termination	Approval Agency	Number of Positions
Molex 1301450090	30 A	Free Hanging (In-Line)	Receptacle Female Sockets	Cord-Clamp Strain Relief Locking Blade	600 VAC	3 Phase	NEMA L23-30R	Screw	CSA UL

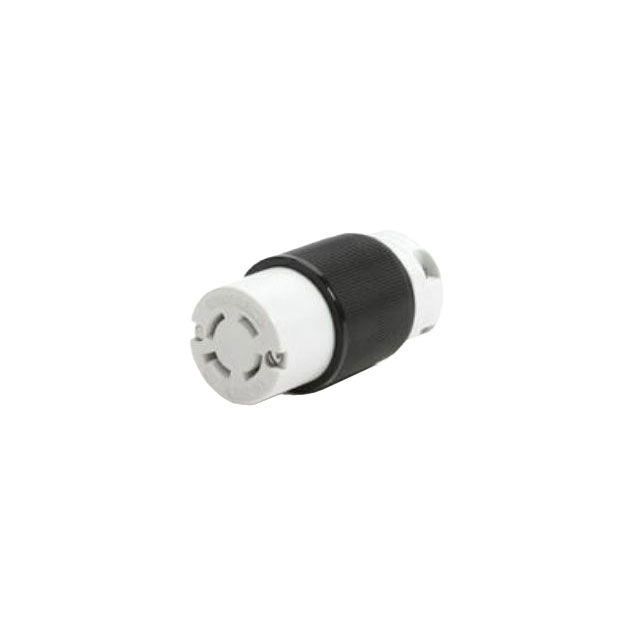

Molex 1301450080	30 A	Free Hanging (In-Line)	Receptacle Female Sockets	Cord-Clamp Strain Relief Locking Blade	480 VAC	3 Phase	NEMA L16-30R	Screw	CSA UL	4
Molex 1301450010	20 A	Free Hanging (In-Line)	Plug Male Blades	Cord-Clamp Strain Relief Locking Blade	125 VAC		NEMA L5-20P	Screw	CSA UL

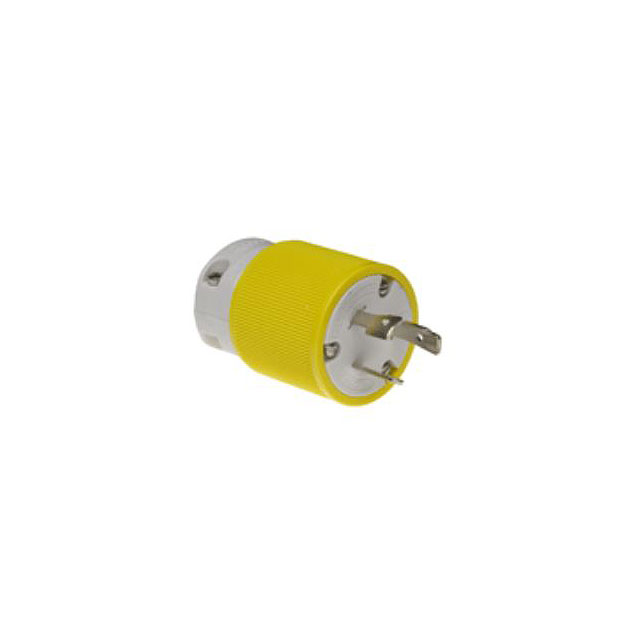

Molex 1301450012	20 A	Free Hanging (In-Line)	Plug Male Blades	Cord-Clamp Strain Relief Locking Blade	250 VAC		NEMA L6-20P	Screw	CSA UL
Molex 1301450023	20 A	Free Hanging (In-Line)	Plug Male Blades	Cord-Clamp Strain Relief Locking Blade	480 VAC	3 Phase	NEMA L22-20P	Screw	CSA UL	4
Molex 1301450022	20 A	Free Hanging (In-Line)	Plug Male Blades	Cord-Clamp Strain Relief Locking Blade	208 VAC	3 Phase	NEMA L21-20P	Screw	CSA UL
Molex 1301450016	20 A	Free Hanging (In-Line)	Plug Male Blades	Cord-Clamp Strain Relief Locking Blade	250 VAC			Screw	CSA UL	4
Molex 1301450039	20 A	Free Hanging (In-Line)	Receptacle Female Sockets	Cord-Clamp Strain Relief Locking Blade	480 VAC	3 Phase	NEMA L16-20R	Screw	CSA UL	4
Molex 1301450088	30 A	Free Hanging (In-Line)	Receptacle Female Sockets	Cord-Clamp Strain Relief Locking Blade	600 VAC	3 Phase	NEMA L23-30R	Screw	CSA UL
Molex 1301450086	30 A	Free Hanging (In-Line)	Receptacle Female Sockets	Cord-Clamp Strain Relief Locking Blade	480 VAC	3 Phase	NEMA L22-30R	Screw	CSA UL
