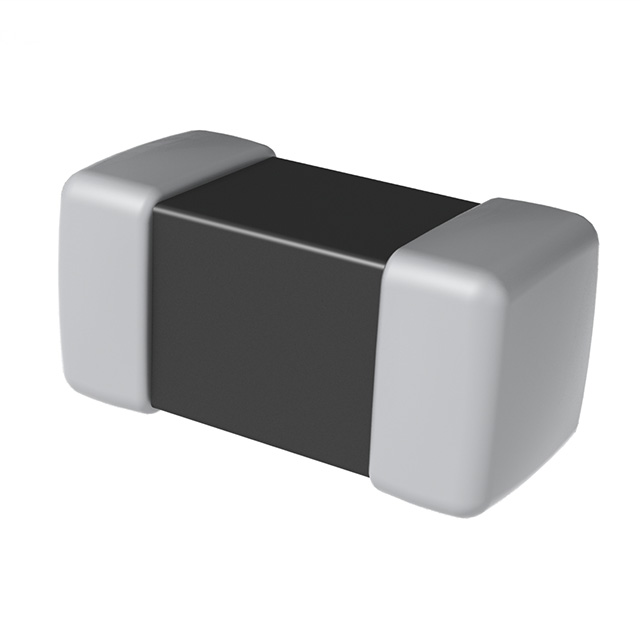

L1008S Series
Manufacturer: KEMET
Beta
⌘K
FIXED IND 1UH 1.2A 115 MOHM SMD
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Shielding | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Current Rating (Amps) | Mounting Type | Inductance Frequency - Test | Material - Core | DC Resistance (DCR) | Tolerance | Type | Inductance | Package / Case | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 85 °C | -40 C | 1008 | Shielded | 0.079 in | 2 mm | 1.2 A | Surface Mount | 1 MHz | Ferrite | 115 mOhm | 20 % | Multilayer | 1 µH | 2520 Metric | 1008 | 2.5 mm | 0.079 in | 0.098 in | 2 mm | |
KEMET | 85 °C | -40 C | 1008 | Shielded | 0.079 in | 2 mm | 1.1 A | Surface Mount | 1 MHz | Ferrite | 20 % | Multilayer | 4.7 ÁH | 2520 Metric | 1008 | 2.5 mm | 0.079 in | 0.098 in | 2 mm | 160 mOhm |
