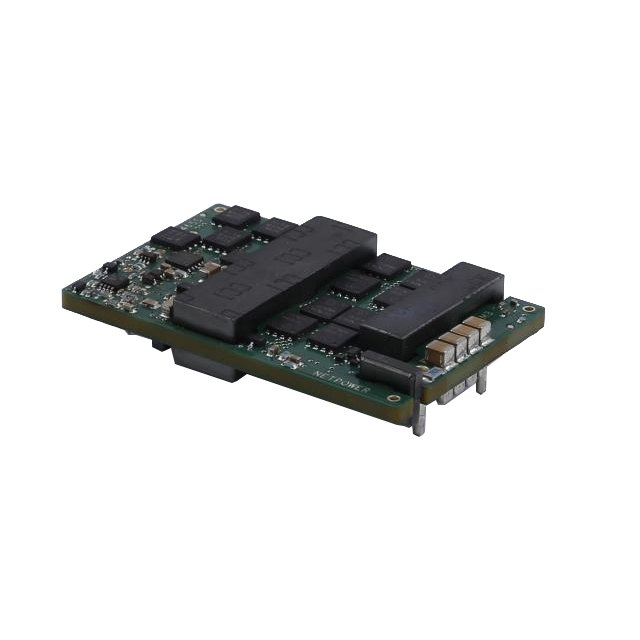

QBC4120 Series
Manufacturer: NetPower
Beta
⌘K
DC DC CONVERTER 12V 396W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Mounting Type | Voltage - Input (Max) [Max] | Efficiency | Supplier Device Package | Type | Package / Case | Current - Output (Max) [Max] | Control Features | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Applications | Features | Voltage - Output 1 | Voltage - Isolation | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NetPower | 85 °C | -40 C | 1 | Through Hole | 75 V | 95.5 % | Quarter Brick | Isolated Module | Quarter Brick | 33 A | Active Low Enable | 36 V | 1.46 " | 2.29 in | 10.2 mm | 37.1 mm | 0.4 " | 58.2 mm | ITE (Commercial) | Remote On/Off | 12 V | 2250 VDC | 396 W |
