SSQ-108 Series

Headers & Wire Housings Tiger Buy Socket Strip with Square Tails, 0.100" Pitch

Manufacturer: Samtec Inc.

Catalog

Headers & Wire Housings Tiger Buy Socket Strip with Square Tails, 0.100" Pitch

Catalog

Headers & Wire Housings Tiger Buy Socket Strip with Square Tails, 0.100" Pitch

...

Part	Contact Finish - Post	Insulation Height	Insulation Height	Number of Positions Loaded	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Type	Insulation Color	Voltage Rating	Number of Positions	Fastening Type	Contact Material	Contact Finish - Mating	Connector Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Termination	Style	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. SSQ-109-02-S-S	Tin	0.335 "	8.51 mm	All	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square	4.93 mm	0.194 in	UL94 V-0	Forked	Black	465 VAC 655 VDC	9	Push-Pull	Phosphor Bronze	Gold	Receptacle	Through Hole	30 Áin	0.76 Ám	0.1 in	2.54 mm	Solder	Board to Board Cable	1

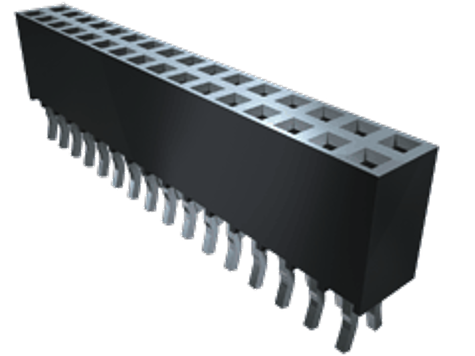

Samtec Inc. SSQ-120-02-F-S	Tin	0.335 "	8.51 mm	All	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square	4.93 mm	0.194 in	UL94 V-0	Forked	Black	465 VAC 655 VDC	20	Push-Pull	Phosphor Bronze	Gold	Receptacle	Through Hole	3 µin	0.076 µm	0.1 in	2.54 mm	Solder	Board to Board Cable	1
Samtec Inc. SSQ-114-23-F-D	Tin	0.335 "	8.51 mm	All	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square	10 mm	0.394 in	UL94 V-0	Forked	Black	465 VAC 655 VDC	28	Push-Pull	Phosphor Bronze	Gold	Receptacle	Through Hole	3 µin	0.076 µm	0.1 in	2.54 mm	Solder	Board to Board Cable	2	2.54 mm	0.1 in
Samtec Inc. SSQ-112-22-G-D-RA	Gold	0.195 in	4.95 mm	All	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square	2.54 mm	0.1 in	UL94 V-0	Forked	Black	465 VAC 655 VDC	24	Push-Pull	Phosphor Bronze	Gold	Receptacle	Through Hole Right Angle	20 µin	0.51 µm	0.1 in	2.54 mm	Solder	Board to Board Cable	2	2.54 mm	0.1 in	3 µin	0.076 µm
Samtec Inc. SSQ-136-01-F-D	Tin	0.335 "	8.51 mm	All	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square	2.64 mm	0.104 in	UL94 V-0	Forked	Black	465 VAC 655 VDC	72	Push-Pull	Phosphor Bronze	Gold	Receptacle	Through Hole	3 µin	0.076 µm	0.1 in	2.54 mm	Solder	Board to Board Cable	2	2.54 mm	0.1 in
Samtec Inc. SSQ-108-01-T-D	Tin	0.335 "	8.51 mm	All	Liquid Crystal Polymer (LCP)	-55 °C	105 ░C	Square	2.64 mm	0.104 in	UL94 V-0	Forked	Black	465 VAC 655 VDC		Push-Pull	Phosphor Bronze		Receptacle	Through Hole			0.1 in	2.54 mm	Solder	Board to Board Cable	2	2.54 mm	0.1 in			16
Samtec Inc. SSQ-140-03-G-D	Gold	0.335 "	8.51 mm	All	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square	10 mm	0.394 in	UL94 V-0	Forked	Black	465 VAC 655 VDC	80	Push-Pull	Phosphor Bronze	Gold	Receptacle	Through Hole	20 µin	0.51 µm	0.1 in	2.54 mm	Solder	Board to Board Cable	2	2.54 mm	0.1 in	3 µin	0.076 µm
Samtec Inc. SSQ-136-23-G-D-RA	Gold	0.195 in	4.95 mm	All	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square			UL94 V-0	Forked	Black	465 VAC 655 VDC	72	Push-Pull	Phosphor Bronze	Gold	Receptacle	Through Hole Right Angle	20 µin	0.51 µm	0.1 in	2.54 mm	Solder	Board to Board Cable	2	2.54 mm	0.1 in	3 µin	0.076 µm		7.62 mm	0.3 "
Samtec Inc. SSQ-118-21-G-D	Gold	0.335 "	8.51 mm	All	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square	2.64 mm	0.104 in	UL94 V-0	Forked	Black	465 VAC 655 VDC	36	Push-Pull	Phosphor Bronze	Gold	Receptacle	Through Hole	20 µin	0.51 µm	0.1 in	2.54 mm	Solder	Board to Board Cable	2	2.54 mm	0.1 in	3 µin	0.076 µm
Samtec Inc. SSQ-105-02-T-S	Tin	0.335 "	8.51 mm	All	Liquid Crystal Polymer (LCP)	-55 °C	105 ░C	Square	4.93 mm	0.194 in	UL94 V-0	Forked	Black	465 VAC 655 VDC		Push-Pull	Phosphor Bronze		Receptacle	Through Hole			0.1 in	2.54 mm	Solder	Board to Board Cable	1
