109E5748 Series

Catalog

FAN AXIAL 172X51MM 48VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Blade	Material - Frame	Lifetime @ Temp.	RPM	Power (Watts)	Voltage - Rated	Width [x]	Air Flow	Air Flow	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Approval Agency	Weight	Weight	Termination	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Noise	Features	Operating Temperature [Max]	Operating Temperature [Min]
Sanyo Denki America Inc. 109E5748C502	55.2 VDC	40.8 VDC	1.2 A	Plastic	Aluminum	40000 Hrs	4800 RPM	57.6 W	48 VDC	51 mm	9.8 m³/min	350 CFM	Rectangular/Rounded	150 mm	172 mm	Tubeaxial	CSA TUV UL	1.7 lbs	760 g	2 Wire Leads	1.237 in H2O	308 Pa	-20 ░C	70 °C	Ball
Sanyo Denki America Inc. 109E5748F502	55.2 VDC	40.8 VDC	190 mA	Plastic	Aluminum	40000 Hrs	2500 RPM	9.12 W	48 VDC	51 mm	5.04 mł/min	180 CFM	Rectangular/Rounded	150 mm	172 mm	Tubeaxial	CSA TUV UL	1.7 lbs	760 g	2 Wire Leads	0.38 in H2O	94.6 Pa	-20 ░C	70 °C	Ball	47 dB
Sanyo Denki America Inc. 109E5748H502	55.2 VDC	40.8 VDC	0.28 A	Plastic	Aluminum	40000 Hrs		13.44 W	48 VDC	51 mm	6.33 m³/min	226 CFM	Rectangular/Rounded	150 mm	172 mm	Tubeaxial	CSA TUV UL	1.7 lbs	760 g	2 Wire Leads	0.551 in H2O	137.2 Pa	-20 ░C	70 °C	Ball	52 dB
Sanyo Denki America Inc. 109E5748M502	55.2 VDC	40.8 VDC	110 mA	Plastic	Aluminum	40000 Hrs	2000 RPM	5.28 W	48 VDC	51 mm	4.14 mł/min	148 CFM	Rectangular/Rounded	150 mm	172 mm	Tubeaxial	CSA TUV UL	1.7 lbs	760 g	2 Wire Leads	0.271 in H2O	67.6 Pa	-20 ░C	70 °C	Ball	41 dB
Sanyo Denki America Inc. 109E5748H501	55.2 VDC	40.8 VDC	0.28 A	Plastic	Aluminum	40000 Hrs		13.44 W	48 VDC	51 mm	6.33 m³/min	226 CFM	Rectangular/Rounded	150 mm	172 mm	Tubeaxial	CSA TUV UL	1.7 lbs	760 g	3 Wire Leads	0.551 in H2O	137.2 Pa	-20 ░C	70 °C	Ball	52 dB	Locked Rotor Protection Speed Sensor (Tach)

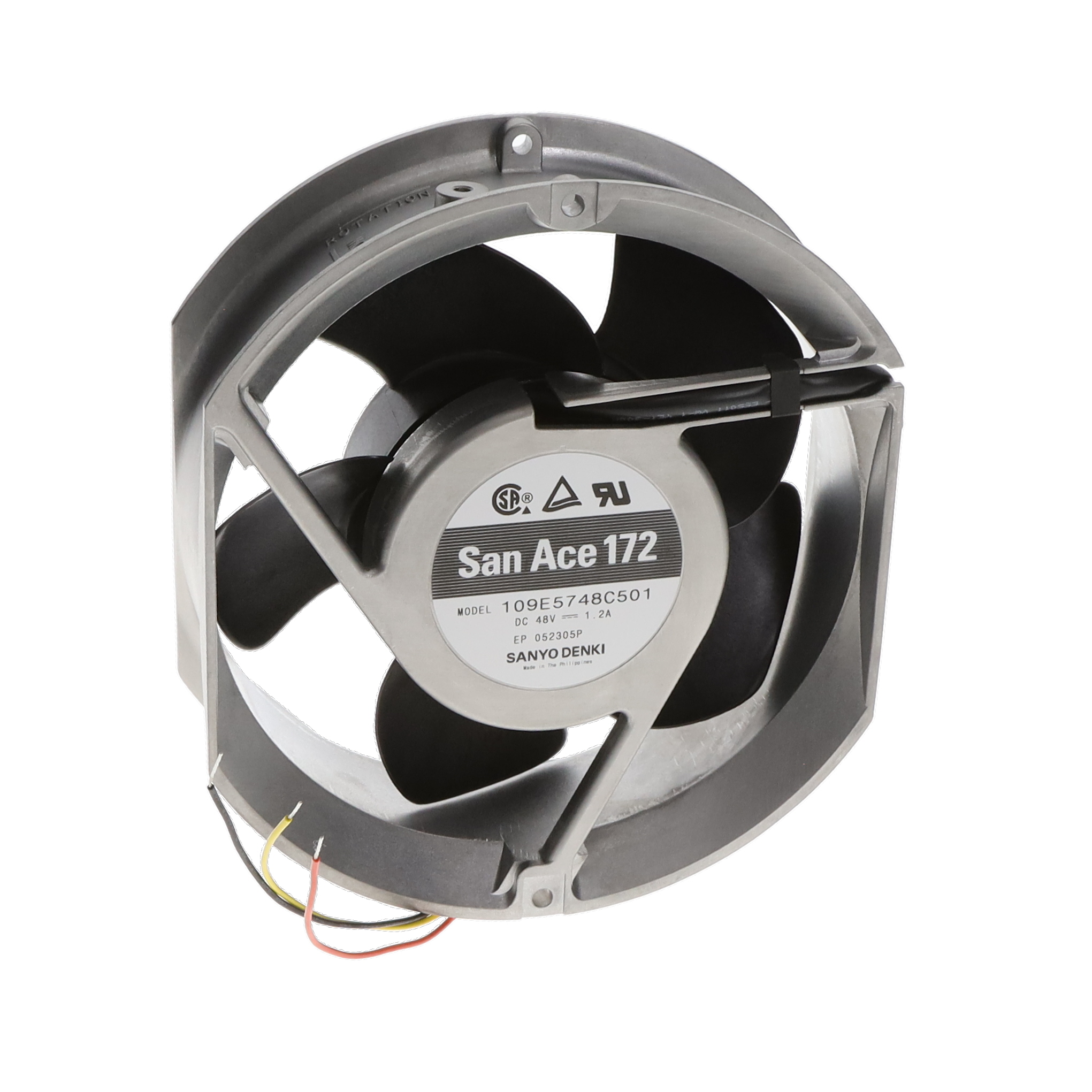

Sanyo Denki America Inc. 109E5748C501	55.2 VDC	40.8 VDC	1.2 A	Plastic	Aluminum	40000 Hrs	4800 RPM	57.6 W	48 VDC	51 mm	9.8 m³/min	350 CFM	Rectangular/Rounded	150 mm	172 mm	Tubeaxial	CSA TUV UL	1.7 lbs	760 g	3 Wire Leads	1.237 in H2O	308 Pa	-20 ░C	70 °C	Ball		Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109E5748F501	55.2 VDC	40.8 VDC	190 mA	Plastic	Aluminum	40000 Hrs	2500 RPM	9.12 W	48 VDC	51 mm	5.04 mł/min	180 CFM	Rectangular/Rounded	150 mm	172 mm	Tubeaxial	CSA TUV UL	1.7 lbs	760 g	3 Wire Leads	0.38 in H2O	94.6 Pa	-20 ░C	70 °C	Ball	47 dB	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109E5748M501	55.2 VDC	40.8 VDC	110 mA	Plastic	Aluminum	40000 Hrs	2000 RPM	5.28 W	48 VDC	51 mm	4.14 mł/min	148 CFM	Rectangular/Rounded	150 mm	172 mm	Tubeaxial	CSA TUV UL	1.7 lbs	760 g	3 Wire Leads	0.271 in H2O	67.6 Pa	-20 ░C	70 °C	Ball	41 dB	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109E5748K501	55.2 VDC	40.8 VDC	0.7 A	Plastic	Aluminum	40000 Hrs	4100 RPM	33.6 W	48 VDC	51 mm	8.4 mł/min	300 CFM	Rectangular/Rounded	150 mm	172 mm	Tubeaxial	CSA TUV UL	1.7 lbs	760 g	3 Wire Leads	0.976 in H2O	243 Pa	-20 ░C	60 °C	Ball	60 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	60 °C	-4 °F
