AB-FC024 Series

Catalog

LED MOD AB-FC BLUE LNR STRIP

Part	Current - Test	Color	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Features	Wavelength	Type	Lumens/Watt @ Current - Test	Temperature - Test	Viewing Angle	Configuration	Lens Type	Current - Max [Max]	Wavelength [Max]	Wavelength [Min]

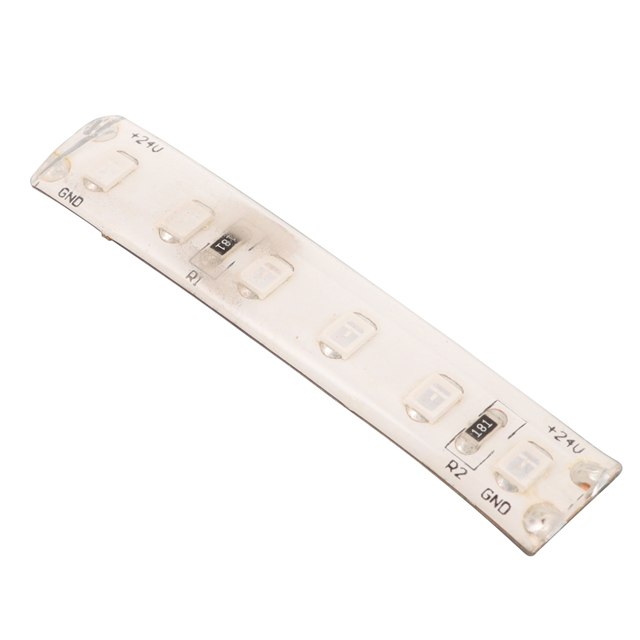

American Bright Optoelectronics Corporation AB-FC024BL-19700-XA1	660 mA	Blue	168 lm	24 V	5000 mm	10 mm	2.5 mm	IP65	470 nm	LED Module	90 lm/W	25 °C	120 °	Linear Light Strip Flexible	Flat
American Bright Optoelectronics Corporation AB-FC024UA-19700-XA2	830 mA	UltraViolet	15 lm	24 V	5000 mm	10 mm		IP65	398 nm	LED Module	1.5 lm/W	25 °C	120 °	Linear Light Strip Flexible	Flat	4.16 A	400 nm	395 nm
