1618278 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

KC-30=RELAY, VACUUM, SPST-NC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Coil Resistance	Coil Voltage	Coil Type	Seal Rating	Contact Rating (Current)	Must Release Voltage	Contact Form	Coil Current	Relay Type	Operate Time	Must Operate Voltage	Release Time
TE Connectivity Aerospace, Defense and Marine KC-30	-55 °C	125 °C	Solder Turret	120 Ohms	26.5 VDC	Non Latching	Sealed - Vacuum	55 A	1 VDC	SPST-NC (DB) (1 Form Y)	220.8 mA	General Purpose	18 ms	16 VDC	20 ms
TE Connectivity Aerospace, Defense and Marine 8-1618278-6	-55 °C	125 °C	Solder Turret			Non Latching	Sealed - Vacuum	30 A		SPDT (1 Form C)		General Purpose	15 ms		9 ms
TE Connectivity Aerospace, Defense and Marine KC-20	-55 °C	125 °C	Solder Turret	0.005 Ohms		Non Latching	Sealed - Vacuum	30 A		SPST-NO (DM) (1 Form X)		General Purpose	18 ms		10 ms
TE Connectivity Aerospace, Defense and Marine KC-30/12VDC	-55 °C	125 °C	Solder Turret	24 Ohms	12 VDC	Non Latching	Sealed - Vacuum	55 A	0.5 VDC	SPST-NC (DB) (1 Form Y)	500 mA	General Purpose	18 ms	8 VDC	20 ms
TE Connectivity Aerospace, Defense and Marine KC-32/12VDC	-55 °C	125 °C	Solder Turret	24 Ohms	12 VDC	Non Latching	Sealed - Vacuum	45 A	5 VDC	SPST-NC (DB) (1 Form Y)	500 mA	General Purpose	18 ms	8 VDC	20 ms
TE Connectivity Aerospace, Defense and Marine KC-22	-55 °C	125 °C	Solder Turret			Non Latching	Sealed - Vacuum	65 A		SPST-NO (DM) (1 Form X)		General Purpose	18 ms		10 ms
TE Connectivity Aerospace, Defense and Marine KC-18/12VDC	-55 °C	125 °C	Solder Turret	48 Ohms	12 VDC	Non Latching	Sealed - Vacuum	30 A	5 VDC	SPDT (1 Form C)	250 mA	General Purpose	15 ms	8 VDC	9 ms
TE Connectivity Aerospace, Defense and Marine KC-12/12VDC	-55 °C	125 °C	Solder Turret	48 Ohms	12 VDC	Non Latching	Sealed - Vacuum	30 A	0.5 VDC	SPDT (1 Form C)	250 mA	General Purpose	15 ms	8 VDC	9 ms
TE Connectivity Aerospace, Defense and Marine KC-2/12VDC	-55 °C	125 °C	Solder Turret	60 Ohms	12 VDC	Non Latching	Sealed - Vacuum	50 A	0.5 VDC	SPDT (1 Form C)	200 mA	General Purpose	15 ms	8 VDC	9 ms

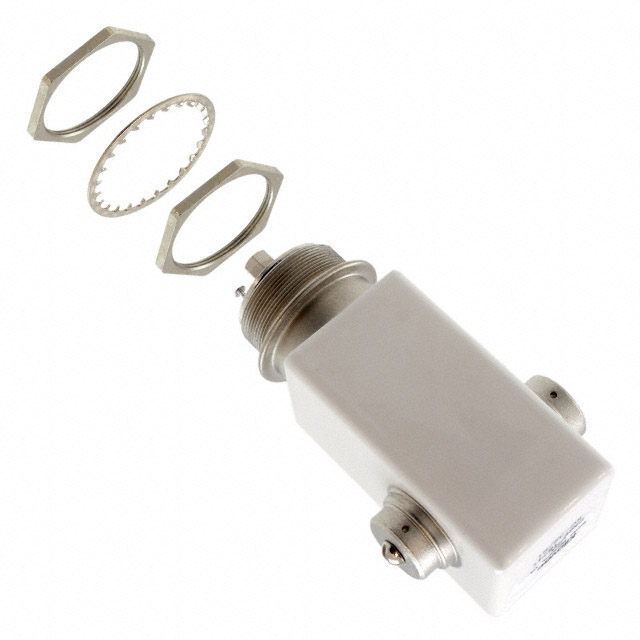

TE Connectivity Aerospace, Defense and Marine 7-1618278-3
