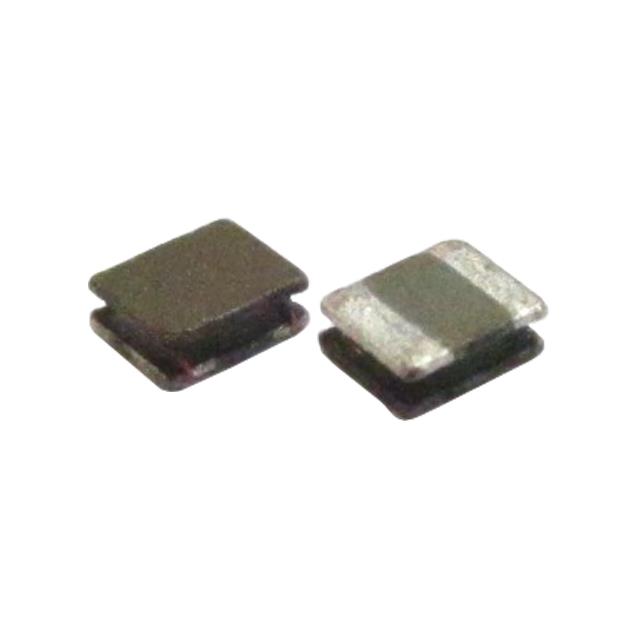

BWMR Series

Catalog

POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) CLOSED MAGNETIC CIRCUIT TYPE - AUTOMATIC ASSEMBLY

Part	Current - Saturation (Isat)	Mounting Type	Supplier Device Package	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Package / Case	Type	Inductance Frequency - Test	Material - Core	DC Resistance (DCR) [Max]	Inductance	Current Rating (Amps)	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Pulse Electronics BWMR002016126R8T00	1.2 A	Surface Mount	0806	20 MHz	1.2 mm	0.047 "	30 %	1.6 mm	0.079 in	0.063 "	2 mm	125 °C	-40 C	Shielded	0806 (2016 Metric)	Drum Core Wirewound	1 MHz	Metal	380 mOhm	6.8 µH	920 mA
Pulse Electronics BWMR00252012100M00	1 A	Surface Mount	1008	14 MHz	1.2 mm	0.047 "	20 %	2 mm	0.098 in	0.079 in	2.5 mm	125 °C	-40 C	Shielded	1008	Drum Core Wirewound	1 MHz	Metal	480 mOhm	10 µH	0.85 A	2520 Metric
Pulse Electronics BWMR00252010100T00	900 mA	Surface Mount	1008	12 MHz			30 %	2 mm	0.098 in	0.079 in	2.5 mm	125 °C	-40 C	Shielded	1008	Drum Core Wirewound	1 MHz	Metal	500 mOhm	10 µH	800 mA	2520 Metric	0.039 in	1 mm
Pulse Electronics BWMR00201612100M00	950 mA	Surface Mount	0806	16 MHz	1.2 mm	0.047 "	20 %	1.6 mm	0.079 in	0.063 "	2 mm	125 °C	-40 C	Shielded	0806 (2016 Metric)	Drum Core Wirewound	1 MHz	Metal		10 µH	0.73 A
Pulse Electronics BWMR002520124R7M00	1.7 A	Surface Mount	1008	23 MHz	1.2 mm	0.047 "	20 %	2 mm	0.098 in	0.079 in	2.5 mm	125 °C	-40 C	Shielded	1008	Drum Core Wirewound	1 MHz	Metal	240 mOhm	4.7 ÁH	1.3 A	2520 Metric
Pulse Electronics BWMR002520104R7T00	1.3 A	Surface Mount	1008	19 MHz			30 %	2 mm	0.098 in	0.079 in	2.5 mm	125 °C	-40 C	Shielded	1008	Drum Core Wirewound	1 MHz	Metal	264 mOhm	4.7 ÁH	1.1 A	2520 Metric	0.039 in	1 mm
Pulse Electronics BWMR00252012220M00	740 mA	Surface Mount	1008	8 MHz	1.2 mm	0.047 "	20 %	2 mm	0.098 in	0.079 in	2.5 mm	125 °C	-40 C	Shielded	1008	Drum Core Wirewound	1 MHz	Metal	1.09 Ohm	22 µH	0.54 A	2520 Metric
Pulse Electronics BWMR00252010220T00	0.56 A	Surface Mount	1008	8 MHz			30 %	2 mm	0.098 in	0.079 in	2.5 mm	125 °C	-40 C	Shielded	1008	Drum Core Wirewound	1 MHz	Metal	1.26 Ohm	22 µH	0.45 A	2520 Metric	0.039 in	1 mm
