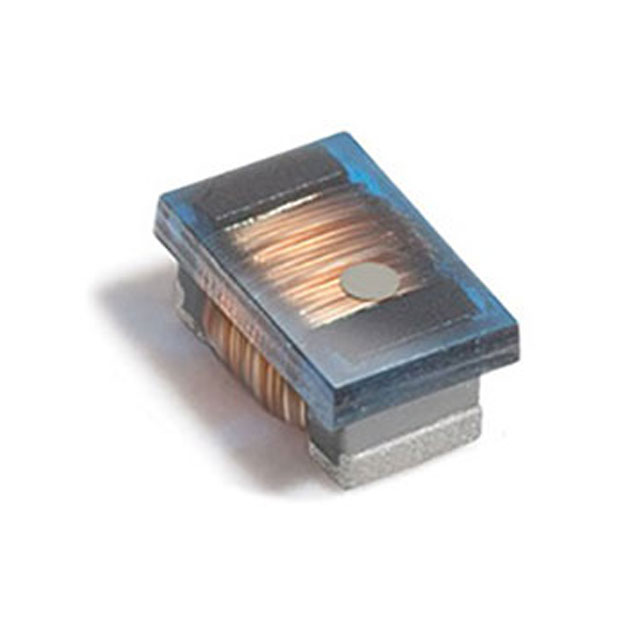

0603AF Series

Manufacturer: Coilcraft

Catalog

RF INDUCTORS - SMD 1608 4700NH UNSHLD 5% 260MA 1.5 OHMS

Part	Material - Core	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Package / Case	Package / Case	Inductance	Q @ Freq	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Frequency - Self Resonant	Current Rating (Amps)	DC Resistance (DCR)
Coilcraft 0603AF-472XJRW	Ferrite	1.8 mm	1.12 mm	0.044 in	0.071 "	5 %	1608 Metric	0603	4.7 ÁH	7.9 MHz 16	0.036 "	0.91 mm	Wirewound	1.5 Ohm	7.9 MHz	Unshielded	85 °C	-40 C	Surface Mount	60 MHz	0.26 A
Coilcraft 0603AF-15NXJRW	Ferrite	1.8 mm	1.12 mm	0.044 in	0.071 "	5 %	1608 Metric	0603	15 nH	13	0.036 "	0.91 mm	Wirewound	23 mOhm	7.9 MHz	Unshielded	85 °C	-40 C	Surface Mount	3.5 GHz	2.1 A
Coilcraft 0603AF-471XJRW	Ferrite	1.8 mm	1.12 mm	0.044 in	0.071 "	5 %	1608 Metric	0603	470 nH	15	0.036 "	0.91 mm	Wirewound		7.9 MHz	Unshielded	85 °C	-40 C	Surface Mount	575 MHz	0.61 A
Coilcraft 0603AF-152XJRW	Ferrite	1.8 mm	1.12 mm	0.044 in	0.071 "	5 %	1608 Metric	0603	1.5 µH	7.9 MHz 17	0.036 "	0.91 mm	Wirewound	1.3 Ohm	7.9 MHz	Unshielded	85 °C	-40 C	Surface Mount	330 MHz	0.28 A
Coilcraft 0603AF-33NXJRW	Ferrite	1.8 mm	1.12 mm	0.044 in	0.071 "	5 %	1608 Metric	0603	33 nH	13	0.036 "	0.91 mm	Wirewound		7.9 MHz	Unshielded	85 °C	-40 C	Surface Mount	2.3 GHz	1.9 A	28 mOhm
