R12844 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

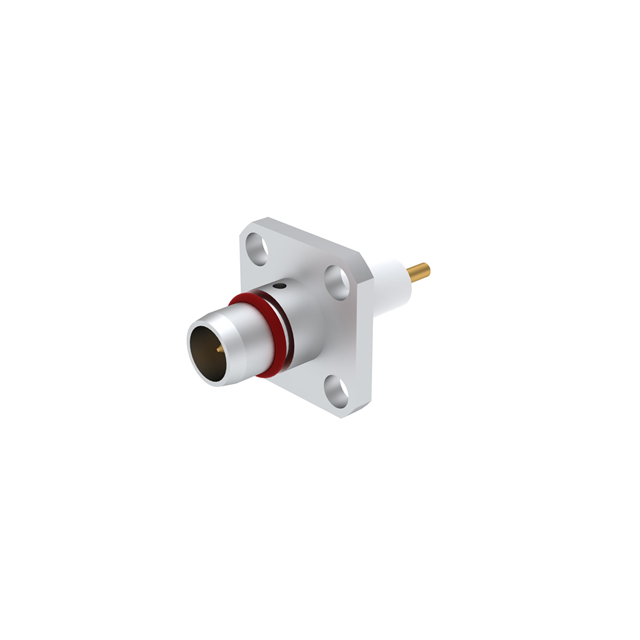

BMA / SQUARE FLANGE PLUG RECEPTA
| Part | Body Material | Dielectric Material | Voltage Rating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Center Contact Material | Ingress Protection | Features | Frequency - Max [Max] | Contact Termination | Shield Termination | Connector Style | Mounting Type | Connector Type | Number of Ports | Housing Color | Impedance | Mounting Feature | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 V | 1000 | -65 ░C | 125 °C | Gold | Brass | IP54 - Dust Protected | Extended Insulation | 22 GHz | Solder | Solder | BMA | Panel Mount Through Hole | Receptacle Male Pin | 1 | Silver | 50 Ohms | Flange | Snap-On |
