737-052 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 52POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Gender	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Contact Material	Card Type	Pitch	Pitch	Number of Positions	Termination	Color	Mounting Type	Contact Finish	Read Out	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]
EDAC Inc. 737-052-522-201	Polyester Thermoplastic	2	Female	26	30 Áin	0.76 Ám	Cantilever	Copper Alloy	Non Specified - Dual Edge	3.96 mm	0.156 in	52	Press-Fit	Black	Through Hole	Gold	Dual	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-052-525-201	Polyester Thermoplastic	2	Female	26	30 Áin	0.76 Ám	Cantilever	Copper Alloy	Non Specified - Dual Edge	3.96 mm	0.156 in	52	Press-Fit	Black	Through Hole	Gold	Dual	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm

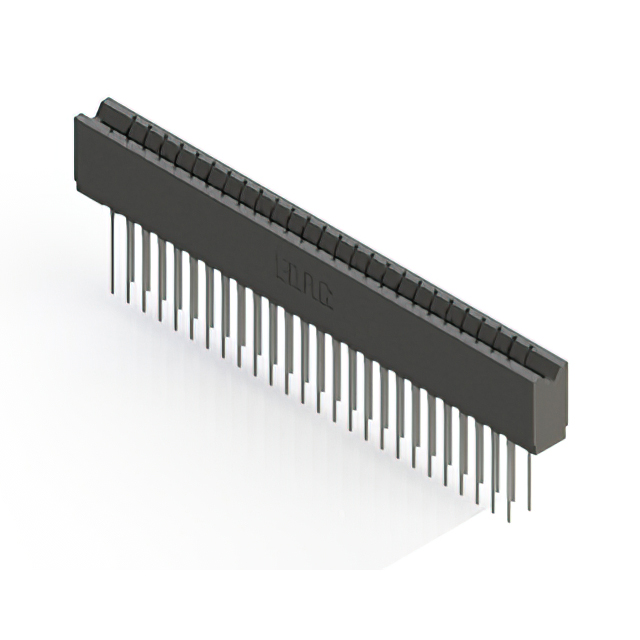

EDAC Inc. 737-052-541-206	Polyester Thermoplastic	2	Female	26	30 Áin	0.76 Ám	Cantilever	Copper Alloy	Non Specified - Dual Edge	3.96 mm	0.156 in	52	Press-Fit Wire Wrap	Black	Through Hole	Gold	Dual	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-052-541-201	Polyester Thermoplastic	2	Female	26	30 Áin	0.76 Ám	Cantilever	Copper Alloy	Non Specified - Dual Edge	3.96 mm	0.156 in	52	Press-Fit Wire Wrap	Black	Through Hole	Gold	Dual	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-052-545-201	Polyester Thermoplastic	2	Female	26	30 Áin	0.76 Ám	Cantilever	Copper Alloy	Non Specified - Dual Edge	3.96 mm	0.156 in	52	Press-Fit Wire Wrap	Black	Through Hole	Gold	Dual	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-052-520-206	Polyester Thermoplastic	2	Female	26	30 Áin	0.76 Ám	Cantilever	Copper Alloy	Non Specified - Dual Edge	3.96 mm	0.156 in	52	Press-Fit	Black	Through Hole	Gold	Dual	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-052-560-201	Polyester Thermoplastic	2	Female	26	30 Áin	0.76 Ám	Cantilever Make Before Break	Copper Alloy	Non Specified - Dual Edge	3.96 mm	0.156 in	52	Press-Fit	Black	Through Hole	Gold	Dual	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-052-522-206	Polyester Thermoplastic	2	Female	26	30 Áin	0.76 Ám	Cantilever	Copper Alloy	Non Specified - Dual Edge	3.96 mm	0.156 in	52	Press-Fit	Black	Through Hole	Gold	Dual	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-052-525-206	Polyester Thermoplastic	2	Female	26	30 Áin	0.76 Ám	Cantilever	Copper Alloy	Non Specified - Dual Edge	3.96 mm	0.156 in	52	Press-Fit	Black	Through Hole	Gold	Dual	2	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
