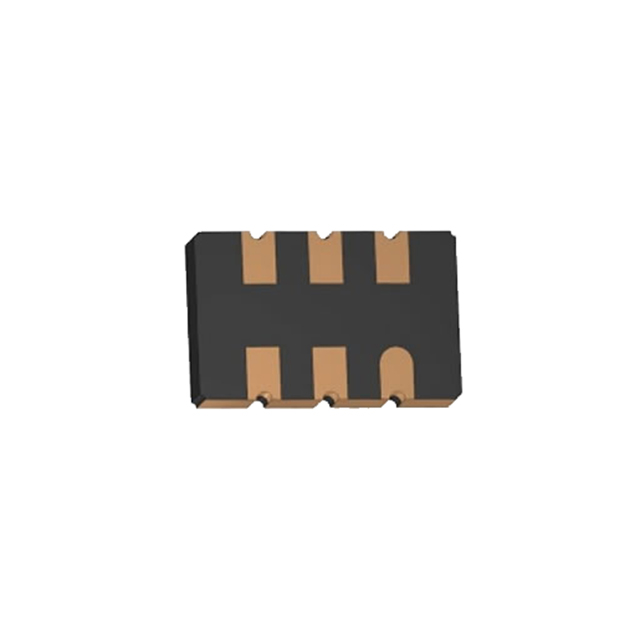

AK5 Series

Catalog

STANDARD CLOCK OSCILLATORS CRYSTAL OSCILLATOR 5032 6-SMD 125MHZ +/-25PPM -40°C ~ 85°C LVDS 2.5V

Part	Package / Case	Frequency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Output	Mounting Type	Type	Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Current - Supply (Max) [Max]	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Frequency Stability	Base Resonator [custom]	Current - Supply (Disable) (Max) [Max]
Abracon LLC AK5DBF1-125.0000T2	6-SMD No Lead	125 MHz	3.2 mm	0.126 in	5 mm	0.197 in	LVDS	Surface Mount	XO (Standard)	Enable/Disable	85 °C	-40 C	2.5 V	0.051 in	1.3 mm	27 mA	6-SMD	5	3	25 ppm	Crystal
Abracon LLC AK5DAF1-100.0000T2	6-SMD No Lead	100 MHz	3.2 mm	0.126 in	5 mm	0.197 in	LVDS	Surface Mount	XO (Standard)	Enable/Disable	85 °C	-40 C	3.3 V	0.051 in	1.3 mm	27 mA	6-SMD	5	3	25 ppm	Crystal	10 µA
Abracon LLC AK5DBF1-100.0000T2	6-SMD No Lead	100 MHz	3.2 mm	0.126 in	5 mm	0.197 in	LVDS	Surface Mount	XO (Standard)	Enable/Disable	85 °C	-40 C	2.5 V	0.051 in	1.3 mm	27 mA	6-SMD	5	3	25 ppm	Crystal
