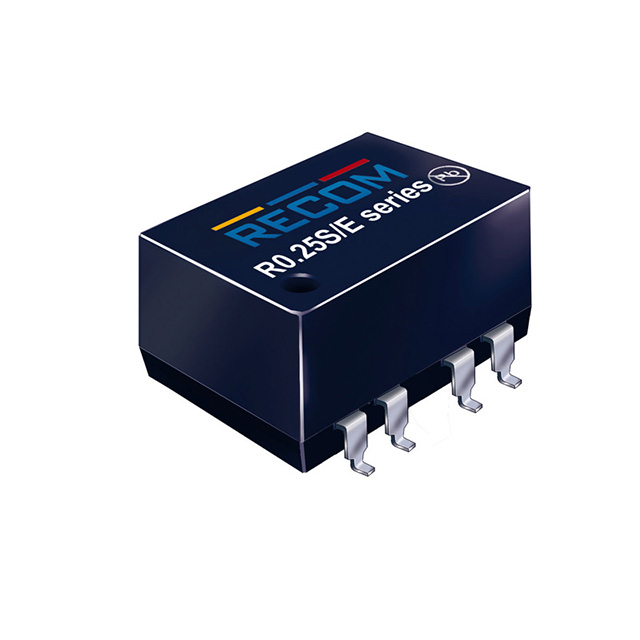

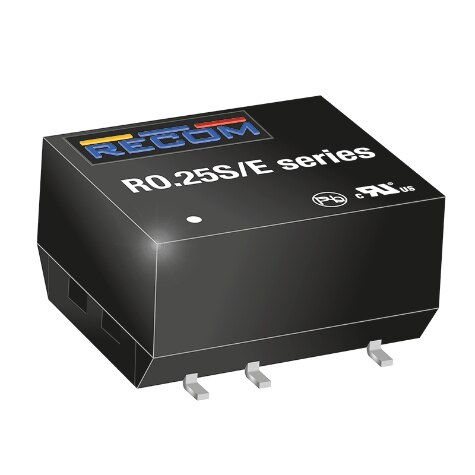

R0.25S/E Series
Manufacturer: Recom Power
Beta
⌘K
0.25W DC/DC-CONVERTER ECONOLINE SMD 1KV UNREG ROHS COMPLIANT: YES
| Part | Voltage - Output 1 | Current - Output (Max) [Max] | Power (Watts) | Voltage - Isolation | Voltage - Input (Max) [Max] | Efficiency | Voltage - Input (Min) [Min] | Features | Applications | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 5 V | 50 mA | 0.25 W | 1000 V | 3.63 V | 75 % | 2.97 V | SCP | ITE (Commercial) | 1 | -40 C | 100 °C | 8-SMD Module | Surface Mount | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | Isolated Module |
 Recom Power | 5 V | 50 mA | 0.25 W | 2000 V | 13.2 V | 74 % | 10.8 V | SCP | ITE (Commercial) | 1 | -40 C | 100 °C | 8-SMD Module | Surface Mount | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | Isolated Module |
Recom Power | 5 V | 50 mA | 0.25 W | 1000 V | 13.2 V | 74 % | 10.8 V | SCP | ITE (Commercial) | 1 | -40 C | 100 °C | 8-SMD Module | Surface Mount | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | Isolated Module |
 Recom Power | 5 V | 50 mA | 0.25 W | 1000 V | 5.5 V | 77 % | 4.5 V | SCP | ITE (Commercial) | 1 | -40 C | 100 °C | 8-SMD Module | Surface Mount | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | Isolated Module |
 Recom Power | 5 V | 50 mA | 0.25 W | 1000 V | 3.63 V | 75 % | 2.97 V | SCP | ITE (Commercial) | 1 | -40 C | 100 °C | 8-SMD Module | Surface Mount | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | Isolated Module |
Recom Power | 5 V | 50 mA | 0.25 W | 1000 V | 13.2 V | 74 % | 10.8 V | SCP | ITE (Commercial) | 1 | -40 C | 100 °C | 8-SMD Module | Surface Mount | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | Isolated Module |
Recom Power | 5 V | 50 mA | 0.25 W | 2000 V | 13.2 V | 74 % | 10.8 V | SCP | ITE (Commercial) | 1 | -40 C | 100 °C | 8-SMD Module | Surface Mount | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | Isolated Module |
Recom Power | 5 V | 50 mA | 0.25 W | 2000 V | 5.5 V | 77 % | 4.5 V | SCP | ITE (Commercial) | 1 | -40 C | 100 °C | 8-SMD Module | Surface Mount | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | Isolated Module |
 Recom Power | 5 V | 50 mA | 0.25 W | 1000 V | 5.5 V | 77 % | 4.5 V | SCP | ITE (Commercial) | 1 | -40 C | 100 °C | 8-SMD Module | Surface Mount | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | Isolated Module |
 Recom Power | 5 V | 50 mA | 0.25 W | 1000 V | 5.5 V | 77 % | 4.5 V | SCP | ITE (Commercial) | 1 | -40 C | 100 °C | 8-SMD Module | Surface Mount | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | Isolated Module |
