P84W Series

Catalog

PMI ROUND LED .500" 12V WIRE RED

Part	Termination Style	Wavelength - Peak	Type	Lens Style	Current	Panel Cutout Shape	Viewing Angle	Lens Transparency	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Lens Color	Millicandela Rating	Voltage	Lens Size	Lens Size	Lens Size [diameter]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Ratings
Visual Communications Company - VCC P84W-R12H-CR-R-	Wire Leads - 6.000" (152.40mm)	634 nm	LED	Round with Flat Top	25 mA	Round	75 °	Fresnel	0.5 in	12.7 mm	Red	Red	780 mcd	12 V	5 mm	T-1 3/4
Visual Communications Company - VCC P84W-B48H-CB		465 nm	LED	Round with Flat Top	9.5 mA	Round	45 °	Clear	0.5 in	12.7 mm	Blue	Blue	700 mcd	48 V			15.4 mm

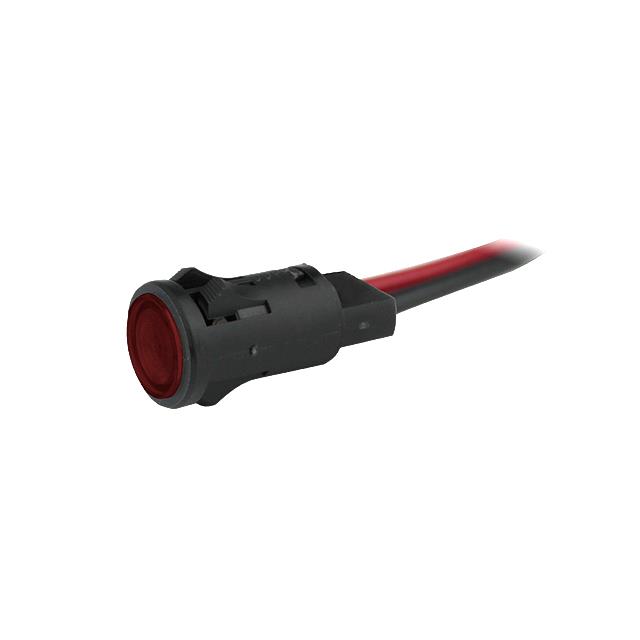

Visual Communications Company - VCC P84W-R120-CR		634 nm	LED	Round with Flat Top	3.5 mA	Round	75 °	Clear			Red	Red	780 mcd	120 V			12.6 mm	12.6 mm	0.5 in	AC
Visual Communications Company - VCC P84W-G12H-CG-R-	Wire Leads - 6.000" (152.40mm)	520 nm	LED	Round with Flat Top	20 mA	Round	75 °	Fresnel	0.5 in	12.7 mm	Green	Green	780 mcd	12 V	5 mm	T-1 3/4
Visual Communications Company - VCC P84W-A12H-CA-R-	Wire Leads - 6.000" (152.40mm)	592 nm	LED	Round with Flat Top	25 mA	Round	75 °	Fresnel	0.5 in	12.7 mm	Amber	Amber	600 mcd	12 V	5 mm	T-1 3/4
