PPRN244 Series

Catalog

CONN HDR 96POS 0.079 GOLD PCB

Part	Contact Shape	Contact Material	Insulation Material	Number of Positions	Contact Type	Mounting Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Termination	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Current Rating (Amps)	Number of Positions Loaded	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Connector Type

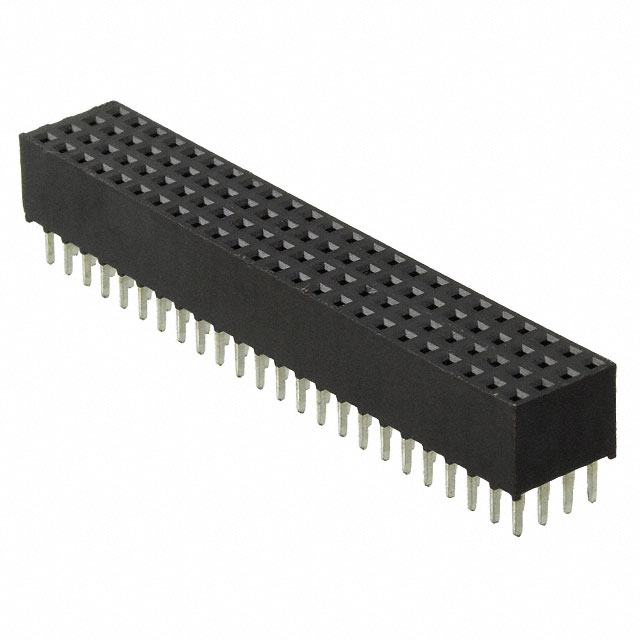

Sullins Connector Solutions PPRN244EFCN	Square	Phosphor Bronze	Polyester	96	Forked	Through Hole	Gold	0.51 µm	20 µin	Black	Solder	0.079 "	2 mm	Push-Pull	2.4 mm	0.094 in	6.35 mm	0.25 in	2 A	All	UL94 V-0	-40 C	105 ░C	2 mm	0.079 in	Tin	Header
