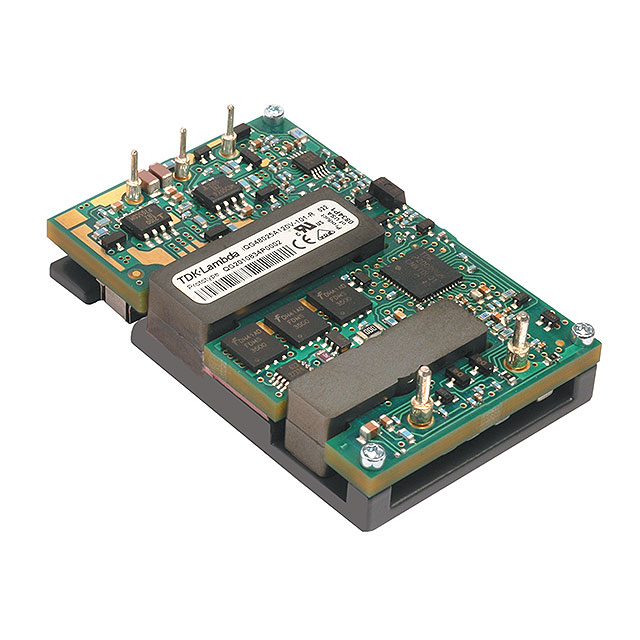

IQG48025 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, DIP, 300 W, 1 OUTPUT, 12 V

Part	Type	Number of Outputs	Voltage - Output 1	Voltage - Isolation	Voltage - Input (Max) [Max]	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Efficiency	Voltage - Input (Min) [Min]	Mounting Type	Power (Watts)	Current - Output (Max) [Max]	Package / Case	Supplier Device Package
TDK Corporation IQG48025A120V-001-R	Isolated Module	1	12 V	1.5 kV	75 V	ITE (Commercial)	1.45 in	0.52 in	2.28 "	36.8 mm	57.9 mm	13.2 mm	124 °C	-40 °C	OCP OVP Remote On/Off	94.5 %	36 V	Through Hole	300 W	25 A	Quarter Brick	Quarter Brick
TDK Corporation IQG48025A120V-009-R	Isolated Module	1	12 V	1.5 kV	75 V	ITE (Commercial)	1.45 in	0.52 in	2.28 "	36.8 mm	57.9 mm	13.2 mm	124 °C	-40 °C	OCP OVP Remote On/Off	94.5 %	36 V	Through Hole	300 W	25 A	Quarter Brick	Quarter Brick
