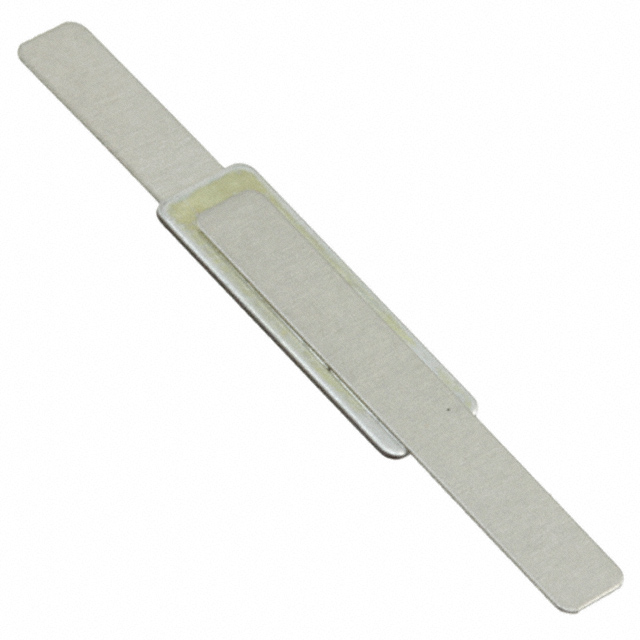

VLR Series
Manufacturer: LITTELFUSE
Beta
⌘K
RESETTABLE FUSES - PPTC 1.7A 12V 100A IMAX
| Part | Approval Agency | Current - Max [Max] | Current - Hold (Ih) (Max) [Max] | Package / Case | Resistance - Initial (Ri) (Min) [Min] | Resistance - Post Trip (R1) (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Type | Thickness (Max) [Max] | Thickness (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current - Trip (It) | Voltage - Max [Max] | Time to Trip |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | CSA TUV UL | 100 A | 1.7 A | Strap | 18 mOhms | 64 mOhms | 0.142 " | 0.866 " | 22 mm | 3.6 mm | Polymeric | 0.7 mm | 0.028 in | 70 °C | -40 C | User Defined | 4.1 A | 12 V | 5 s |
